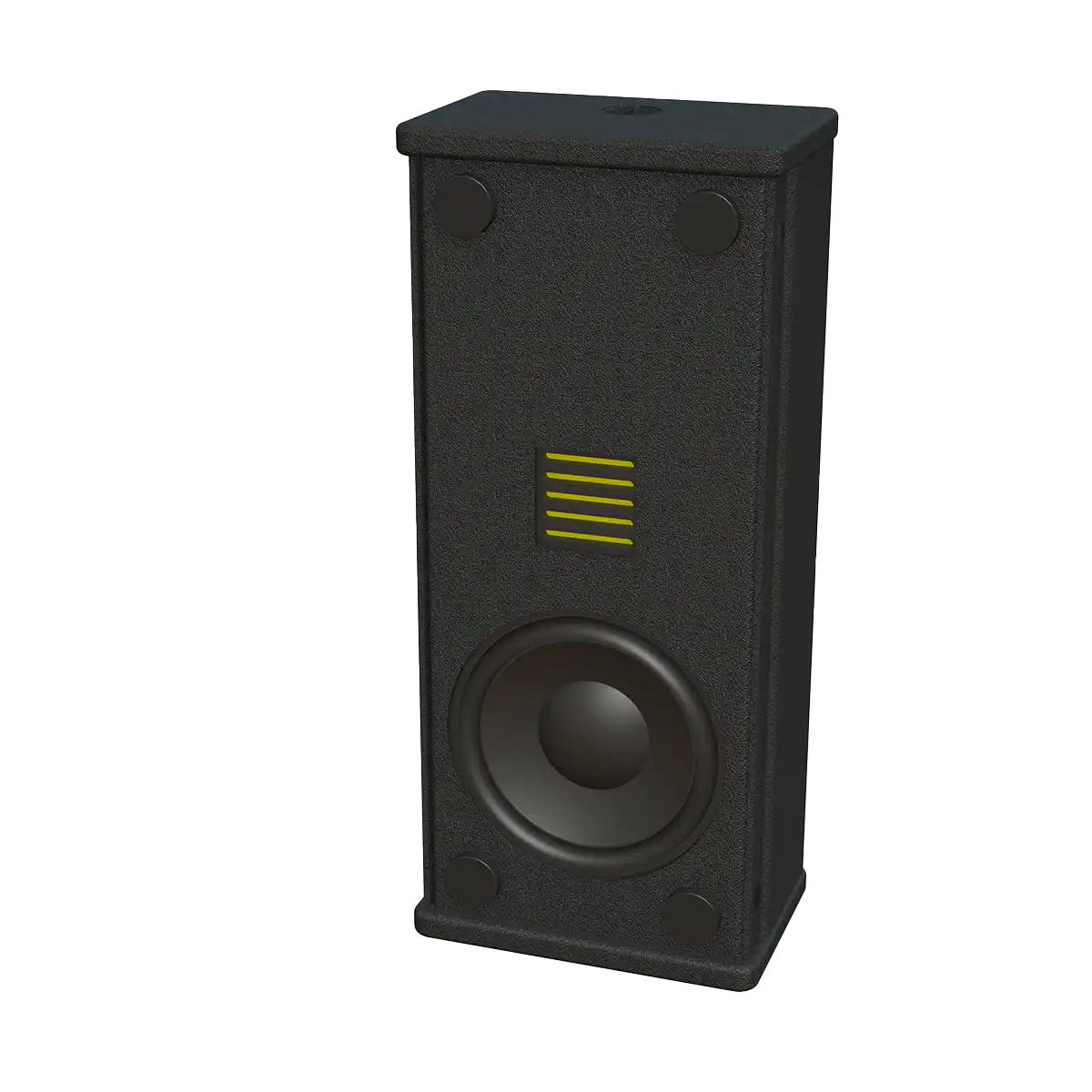

MicroMonitor with grille_R1

AE-MicroMonitor

Compensating for Loss of High Frequency Transients Essential for Speech Intelligibility

The AE-MicroMonitor is an ultra-slim 2-way loudspeaker designed be used in a wide range of critical, near-field applications. It employs a precision Air Motion Transformer HF driver and a 2.5” long-excursion mid bass driver to deliver the exceptional definition and the voice clarity of face to face communication. Two AE-MicroMonitors can be combined with an available Innovox micro subwoofer, to extend LF frequency response to 50 Hz and create an ultra-compact 2.1 system.

Key Features
  • 130° H x 130° V Coverage Pattern
  • Superior Transient Response of AMT HF driver
  • Very thin profile
Applications
  • Articulation Extender in a large Sound System
  • Mid-High Frequency component in very compact 2.1 systems
  • Confidence monitor for podiums

Nominal Data

Nominal Coverage: 130° H x 130° V
Frequency Response: 150 - 20,000 Hz +/-3dB
Nominal Impedance:
Sensitivity (2.83 volt @ 1M) 85.3 dB
Power Handling (AES-2): Long-term 20 W
Maximum Output @ 1M: Long-term 98 dB
Peak 101 dB
Dimensions: Height: 7.25" [184mm]
Width: 3.19" [81mm]
Depth: 2.09" [53mm]
