Articulation Extension In A Compact Profile

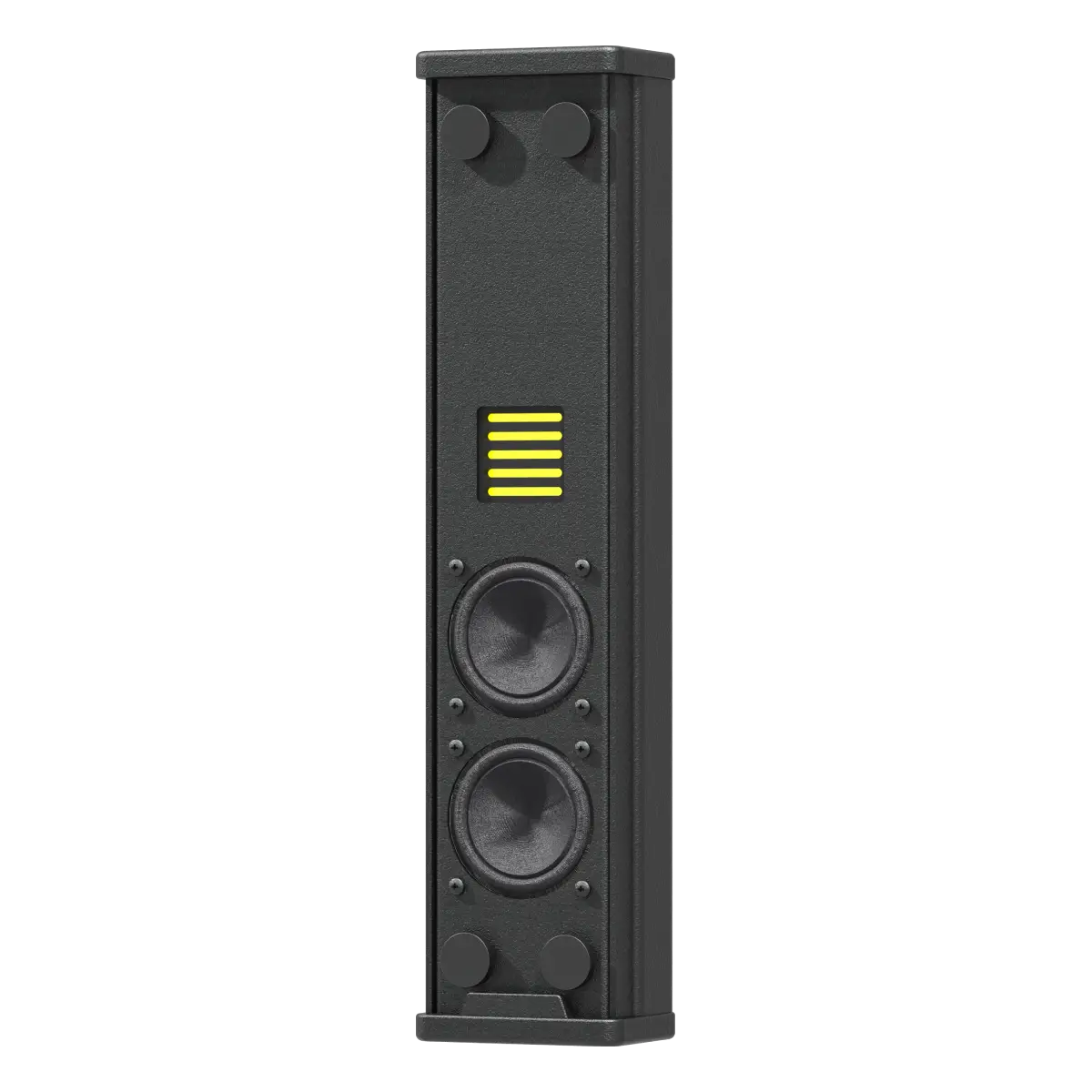

The AE-Nano Monitor is an ultra-slim 2-way loudspeaker designed to be used in a wide range of critical, near-field applications. It employs a precision Air Motion Transformer HF driver and two 2” long-excursion mid bass drivers to deliver the exceptional definition and the voice clarity of face-to-face communication.
Two AE-Nano Monitors can be combined with an available Innovox micro subwoofer, to extend LF frequency response to 50 Hz and create an ultra-compact 2.1 system.
• Enclosure geometry optimized for ultra-slim profile (only 1.52” deep)
• Exceptional transient response
• 130H x 130V coverage
• Adjustable mounting bracket
• High-Definition Voice Lift
• Courtroom systems
• Spot fills & articulation extension
• Very compact 2.1 System when used in combination with micro subwoofer
• Podium confidence monitor
| Frequency Response | 180 Hz-–20 KHz ±3dB |
| Sensitivity | 85 dB @ 2.83 volts / 1M |
| Impedence | 8 Ω (70-volt available) |
| Nominal Coverage | 120° H x 50° V with 7° down angle |
| Long Term Power Handling | 50 W (AES-2) |
| Maximum Long-term Output | 98 dB |
| Peak Output | 104 dB @ 1 meter on axis |
| Dimensions | 9” / 229 mm, 2.07” / 52.5 mm, 1.52” / 39 mm |
