CLA-2035

CLA-2035

True Sound Engagement in Challenging Acoustics

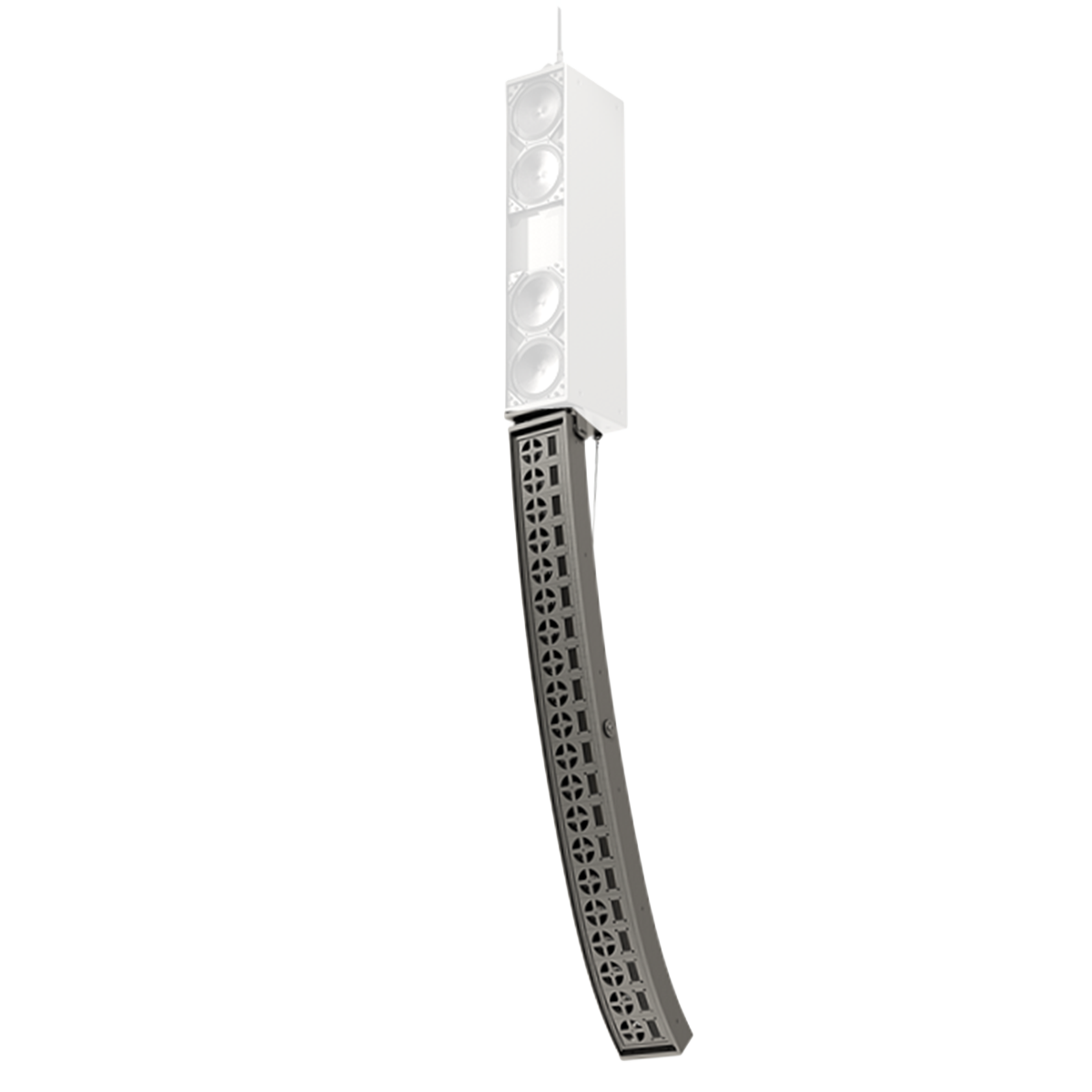

The CLA-2035 is a twenty element J-array loudspeaker. It has twenty 3.5” mid-frequency drivers and twenty ribbon high frequency drivers. The CLA-2035 has been optimized for speech applications in acoustically challenging spaces. It can also serve as an articulation extender in large scale sound systems. The CLA-2035 has been preconfigured in an asymmetrical 35° V by 120° H coverage pattern with vertical directivity to 275 Hz, and low frequency response to 100 Hz.

When it is combined with an Innovox SDLF Series steered bass array, bass response is extended below 50 Hz, creating a high impact, full range music system.

Key Features
  • Asymmetrical 120° H x 35° V Coverage
  • Vertical Directivity to 275 Hz
  • Line Array Projection for Back of Room Coverage
  • Superior Transient Response
Applications
  • Houses of Worship
  • Lecture Halls
  • Presentation Spaces
  • Articulation Extension in Performing Arts Centers

Nominal Data

Frequency Response 100 Hz-–20 KHz ±3dB
Sensitivity 98 dB @ 2.83 volts / 1M
Power Handling 1200 W long term program (AES-2)
Nominal Coverage 120° H x 35° V
Maximum Long-term Output 123 dB
Peak Output 129 dB
