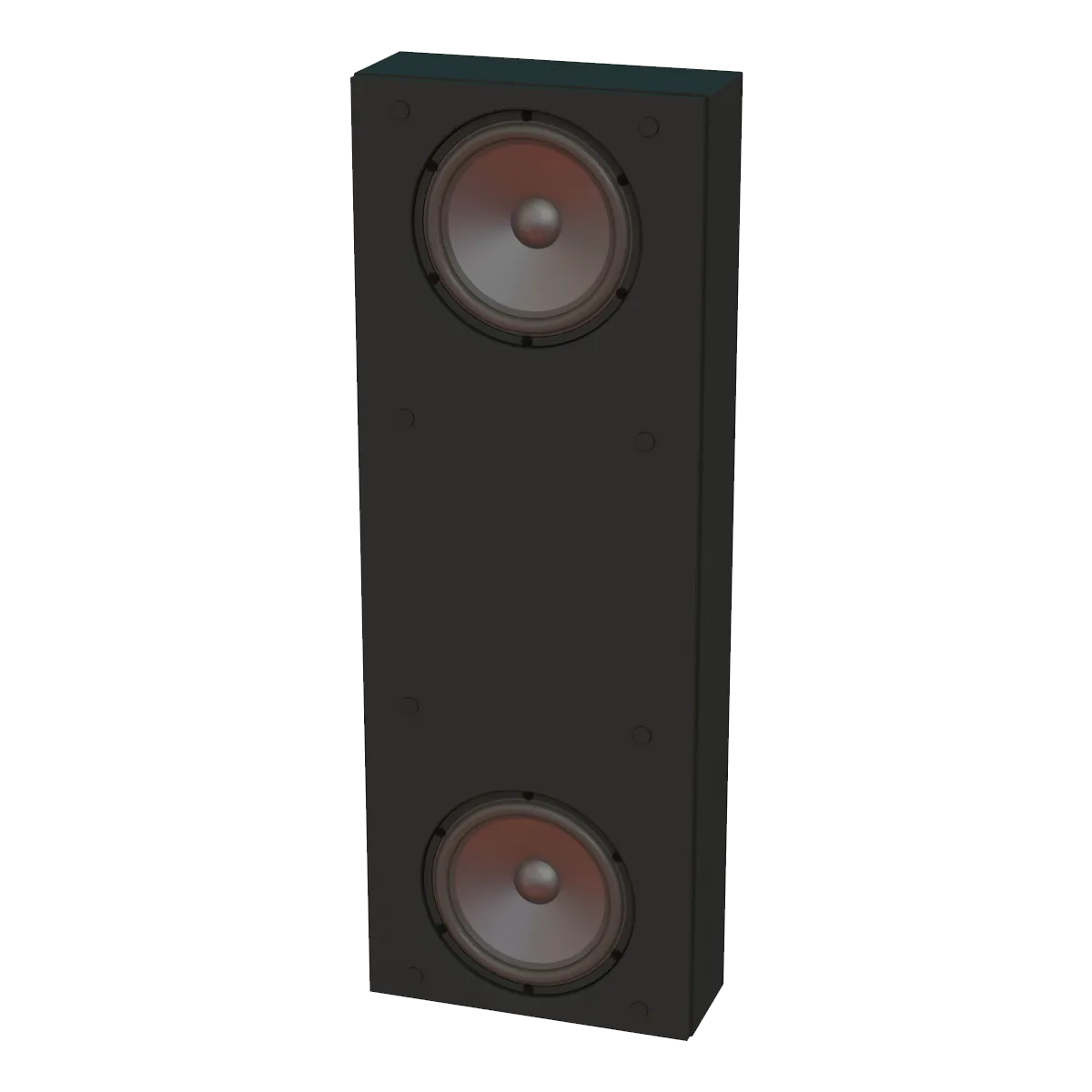

The DLF-206 is a compact dipole loudspeaker designed to augment the mid-bass performance of CLA Series Line Arrays in a biamplified or triamplified configuration.
It features two 6.5” drivers in separate sealed enclosures spaced to take advantage of the dipole cancellation effect in the 150 Hz to 325 Hz frequency range. Below this range, the loudspeaker behaves as a conventional low-frequency system. Its dipole behavior extends the vertical pattern control of CLA Series line array loudspeakers more than an octave and allows for increased system SPL.
Each driver is terminated separately, allowing them to be individually powered and delayed for upward or downward steering of the vertical coverage pattern.
