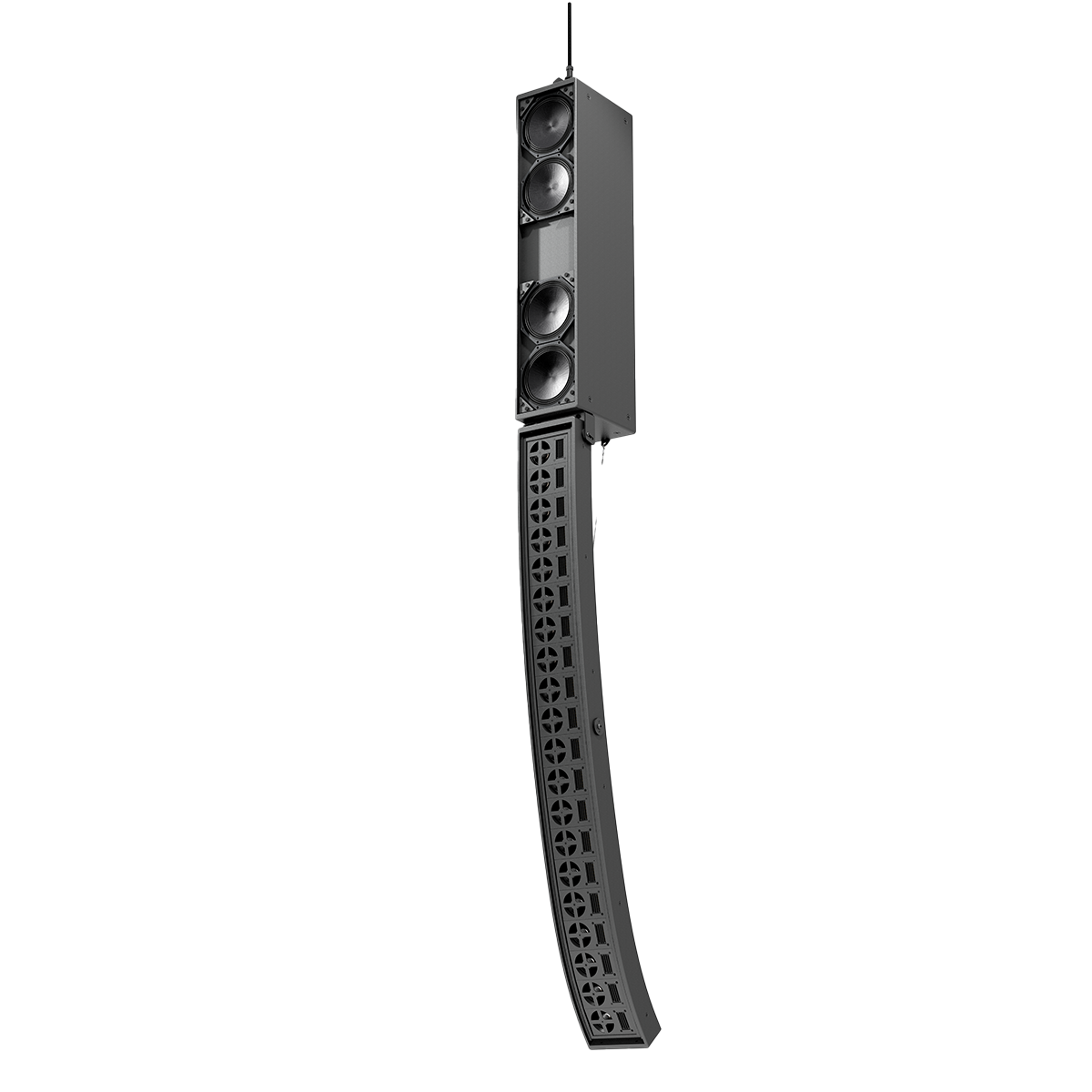

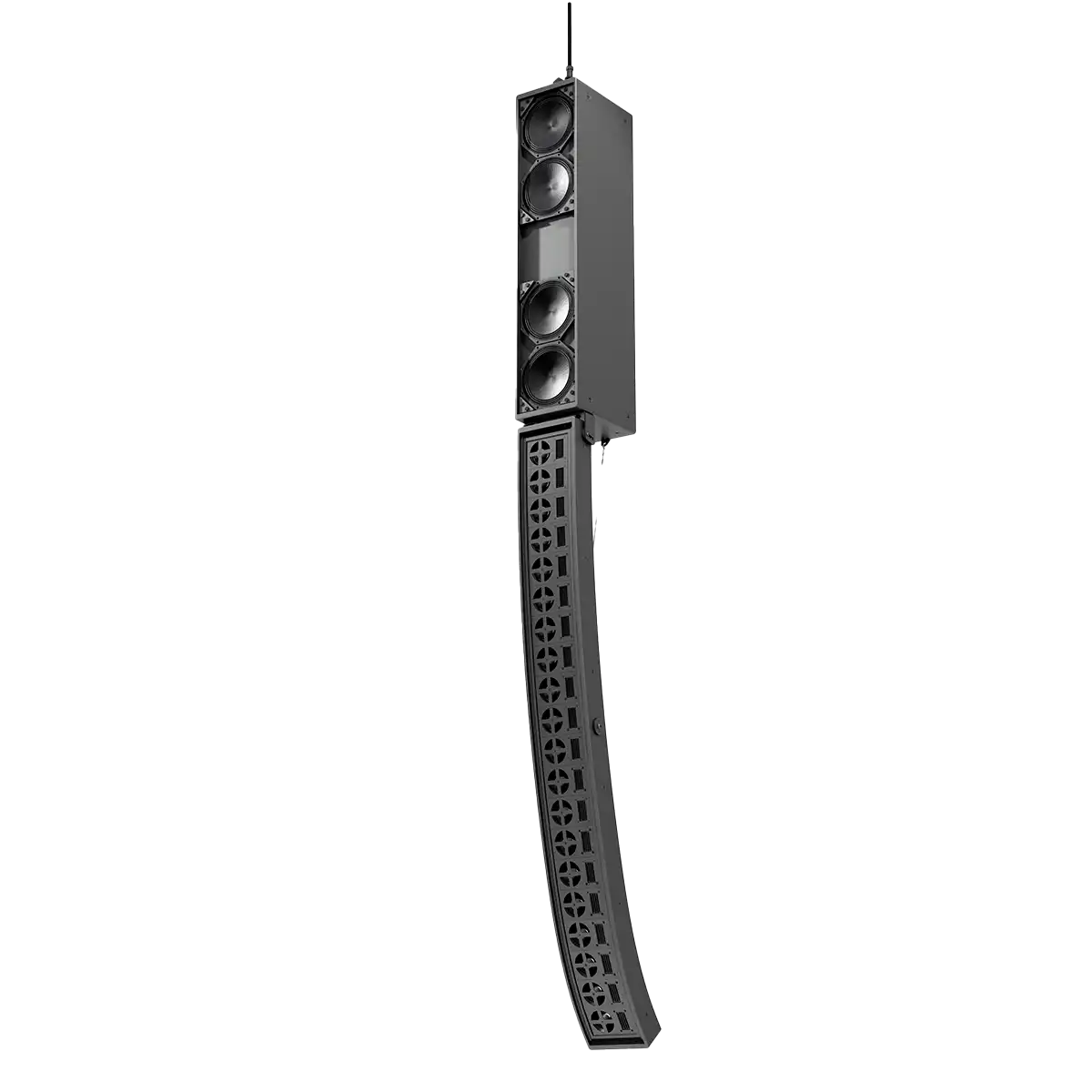

The DLFC-608/CLA 2035 is a dipole steered, low frequency, sub bass cardioid combined with a curvilinear line array. This combination creates a powerful, compact full range music system.
Cardioid Sub-Bass loudspeakers are designed to extend the low-frequency response, projection and precise directional control of the CLA system. The DLFC-608 has six 8” forward facing drivers and two rear cancellation drivers. It is designed to match the superb transient response of the CLA line array.
The dipole drivers are oriented with a vertical spacing which defines an octave wide controlled coverage band, below which the loudspeaker behaves as a conventional LF system. Steering of the LF lobe can be achieved by applying a signal delay to the lower drivers.
The CLA-2035 series loudspeaker is a twenty element j-array. It has twenty 3.5” mid-frequency drivers and twenty ribbon high-frequency drivers. The CLA-2035 series loudspeakers have been optimized for speech applications in acoustically challenging spaces.
The CLA-2035 is preconfigured in asymmetrical 35° V by 120° H coverage patterns with vertical directivity to 275 Hz, and low-frequency response to 100 Hz.
