Flex Synergy Modular
A modular conferencing and presentation platform
Flex Synergy offers a modular completely customizable, yet totally modular, solution to combine uncompromising sound with unparalleled configurability for aesthetically and sonically seamless audio solutions.

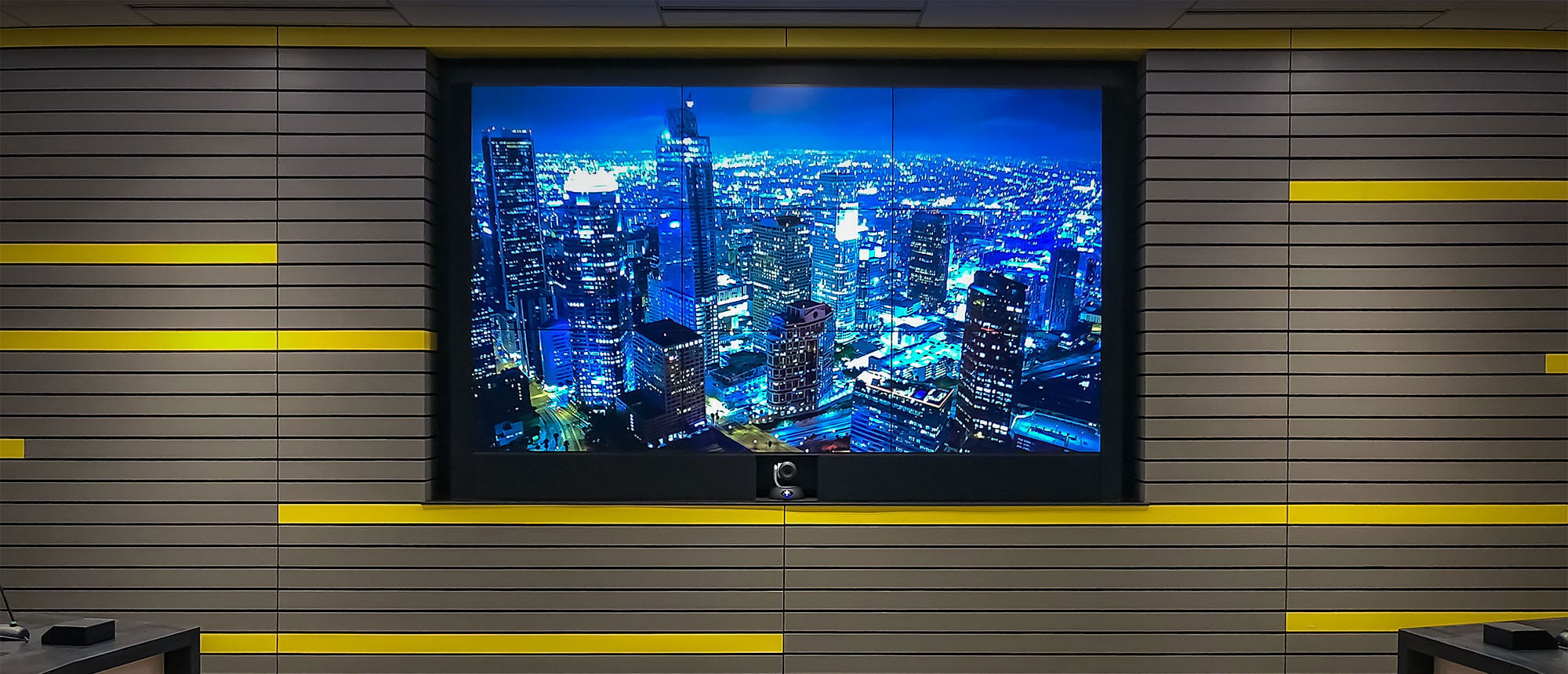

Horizontal Solution
Shown with additional FF-V2 pair L/R
Vertical Solution
Shown with additional FF-V2 pair L/R
Synergy Frames

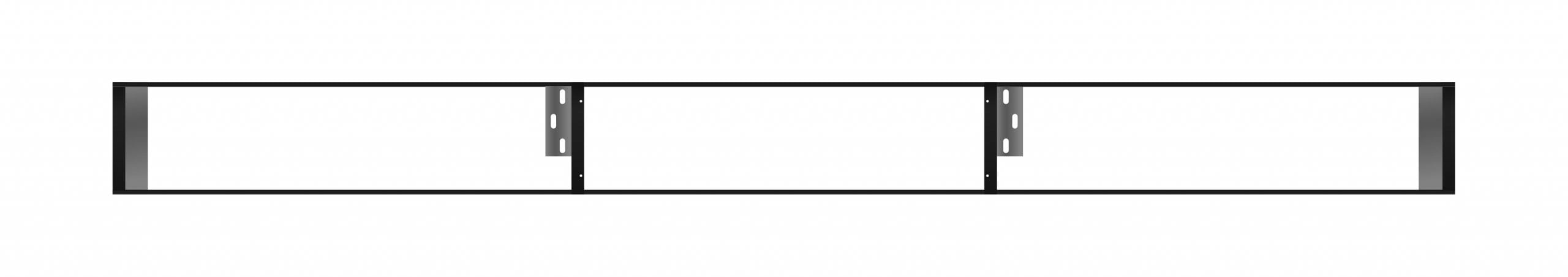

HMF-1WM (Horizontal Module Frame for Single Display, Wall Mount)
Shown without modules
The HMF-1 & 2 horizontal module frames are custom built to match the exact width of the specified video display. They can be populated with a variety of modules to meet the specific requirements of the project. The HMF-1 is supplied with either a display mounting kit or wall mounting kit. The HMF-2 is supplied with a wall mounting kit.
- HMF-1WM (for a single display, Wall-Mounted)
- HMF-1DM (for a single display, Display Mounted)
- HMF-2WM (for 2 or more displays, Wall-Mounted)
- HMF-WM Plus (for dual displays over 90″ and less than 165″ of total frame length)
The VMF-1 vertical wall-mount module frame is custom built to match the exact height of your specified video displays. It can be populated with a variety of modules to meet the specific requirements of the project.
Data Sheets
XRM-1 Extended Range Module
The XRM-1 full-range loudspeaker designed to function as a stand-alone module. Its precision ribbon HF driver and four 3 1/2” long-excursion LF drivers have been optimized to provide the articulation and transient response necessary for the highest speech intelligibility.
| Coverage pattern: | 90 V x 120 H |
| Frequency Response: | 100 Hz – 20 kHz ± 3 dB |
| Max SPL: | 106 dB long term, 112 dB peak |
| Dimensions: | 13.25” W x 7.48” H x 2.76” D |
XRM-1AD Adjustable Down-Angle
The XRM-1AD variation of the XRM-1 allows field adjustment of vertical aiming. Like the XRM-1, It is a full-range loudspeaker designed to function as a stand-alone module. Its precision ribbon HF driver and four 3 1/2” long-excursion LF drivers have been optimized to provide the articulation and transient response necessary for the highest speech intelligibility.
| Coverage pattern: | 90 V x 120 H |
| Frequency Response: | 100 Hz – 20 kHz, ± 3 dB |
| Max SPL: | 106 dB long term, 112 dB peak |
| Dimensions: | 17.50” W x 4.00” H x 3.26” D |
URM-1 Upper Range Module
The URM-1 voice-range loudspeaker with a precision ribbon HF driver and two long-excursion LF drivers. It is designed to function in conjunction with a Micro Sub module for higher output, lower bass extension, and reduced inter-modulation (IM) distortion.
| Coverage pattern: | 90 V x 120 H |
| Frequency Response: | 200 Hz – 20 kHz ± 3 dB |
| Max SPL: | 108 dB long term, 114 dB peak |
| Dimensions: | 6.38” W x 7.50” H x 2.63” D |
URM-1AD Adjustable Down-Angle
The URM-1AD is a variation of the URM-1 that features field adjustment for vertical aiming. It is a voice-range loudspeaker with a precision ribbon HF driver and two long-excursion LF drivers. It is designed to function in conjunction with a Micro Sub module for higher output, lower bass extension, and reduced inter-modulation (IM) distortion.
| Coverage pattern: | 90 V x 120 H |
| Frequency Response: | 200 Hz – 20 kHz ± 3 dB |
| Max SPL: | 108 dB long term, 114 dB peak |
| Dimensions: | 10.50” W x 4.00” H x 3.26” D |
HSA-4.50 Horizontal Synergy Array
The HSA-4.50 is a horizontal line array optimized for voice-range with a precision ribbon HF driver and four 3.5” long-excursion LF drivers. The HSA-4.50 is designed to function in conjunction with a Micro-Sub module for higher output, lower bass extension, and reduced inter-modulation (IM) distortion.
| Coverage pattern: | 120° V x 50° H |
| Frequency Response: | 140 Hz – 20 kHz, ± 3 dB |
| Max SPL: | 112 dB long term, 118 dB peak |
| Dimensions: | 20.00” W x 4.00” H x 3.26” D |
HOM-1 High Output Module
The HOM-1 is a high output voice-range module with a ribbon driver on a waveguide and four 3.5” high-efficiency LF drivers. The HOM-1 is designed to function in conjunction with a Micro-Sub module for higher output, lower bass extension, and reduced inter-modulation (IM) distortion.
| Coverage pattern: | 35° V x 90° H |
| Frequency Response: | 140 Hz – 20 kHz, ± 3 dB |
| Max SPL: | 116 dB long term, 122 dB peak |
| Dimensions: | 16.25” W x 7.50” H x 3.28” D |
MSM-5 Micro Sub Module
The MSM-5 is a very compact precision sub-woofer with a 5 ½ inch long-excursion driver. Working in conjunction with proprietary DSP processing it achieves maximum bass output from a minimum enclosure size. It is designed to complement the Synergy URM-1 loudspeaker module.
| Coverage pattern: | omnidirectional |
| Frequency Response: | 48 Hz – 200 Hz |
| Max SPL: | 102 dB long term, 108 dB peak |
| Dimensions: | 11.00” W x 7.50” H x 4.50” D |
MSM-2×5 Dual Micro Sub Module
The MSM-2×5 is a very compact precision sub-woofer with two 5 ½ inch long-excursion drivers. Working in conjunction with proprietary DSP processing it achieves maximum bass output from a minimum enclosure size. It is designed to complement the Synergy URM-1 loudspeaker module.
| Coverage pattern: | omnidirectional |
| Frequency Response: | 48 Hz – 200 Hz |
| Max SPL: | 108 dB long term, 114 dB peak |
| Dimensions: | 21.50” W x 7.50” H x 4.50” D |
VMS-2×5 Vertical Dual Micro Sub
The VMS-2×5, compact precision sub-woofer utilizing two 5 ½ inch long-excursion drivers. Working in conjunction with proprietary DSP processing, the VMS-2×5 achieves maximum bass output from a minimum enclosure size. The VMS-2×5 is designed to complement the Synergy URM-1 loudspeaker module in vertical frame applications.
| Coverage pattern: | omnidirectional |
| Frequency Response: | 48 Hz – 200 Hz |
| Max SPL: | 108 dB long term, 114 dB peak |
| Dimensions: | 12.00” W x 13.43” H x 4.50” D |
Flex 125.2 – 2 channel DSP Amp Module
The Flex 125.2 Amp, provides DSP and amplification, in a 1-in/2-out or 2-in/2-out configuration which Innovox custom programs based on a customer’s specific project requirements. Typical uses include two-way and stereo applications.
| Frequency Response: | 20 Hz – 20 kHz (+0/-0.25dB (8Ω load, 3dB below rated power)) |
| Power: | 125W LoZ/250 HiZ @ 4Ω, 8Ω all channels driven; 250W @ 4Ω, 8Ω single channel driven; 125W @ 16Ω all channels driven |
| Dimensions: | 8.66” W x 1.75” H x 8.19” D |
Flex 125.4 – 4 channel DSP Amp Module
The Flex 125.4 Amp, provides DSP and amplification, in a 2-in/4-out configuration which Innovox custom programs based on a customer’s specific project requirements. Typical uses include two-way stereo and 2.1 applications.
| Frequency Response: | 20 Hz – 20 kHz (+0/-0.25dB (8Ω load, 3dB below rated power)) |
| Power: | 125W LoZ/250W HiZ @ 4Ω, 8Ω all channels driven; 250W @ 4Ω, 8Ω single channel driven; 125W @ 16Ω all channels driven |
| Dimensions: | 8.66” W x 1.75” H x 11.65” D |
SCPM Sliding Camera Pocket Module
The SCPM is a Sliding Camera Pocket designed to accommodate a wide range of robotic cameras. The pocket can be adjusted within a Synergy frame to position the pocket as closely as possible to the adjacent wall, minimizing protrusion of the camera into the room.
| Standard SCPM Dimensions: | 12.00” W x 7.50” H x 7.00” D |
Custom fixed camera pocket options
These options include all of the necessary modifications of the frame and module dimensions to accommodate the following cameras: Vaddio ClearVIEW & RoboShot, Polycom EagleEye Director, and Cisco Speaker Track 60. Additional custom camera pocket options are available upon request.
| CPM-V | For Vaddio ClearView & RoboSHOT size cameras |
| CPM-P | For Polycom EagleEye Director (for dual display systems only) |
| CPM-C | For Cisco Speaker Track 60 |
DMM-1 Directional Mic Module
The DMM-1 Directional Microphone Module houses a premium Earthworks cardioid condenser microphone within an acoustic enclosure designed to be co-located with a robotic camera. It can be used stand-alone or in conjunction with ceiling or table mounted microphones in a video conference and telepresence applications. Note: This module requires IEC standard 48V @ 10mA phantom power (supplied by others) to perform correctly.
| Dimensions: | 7.50” W x 7.50” H x 4.50” D |
