FPV2x

FP-V2

Made-to-Measure for the Exact Width of Your Flat Panel Display

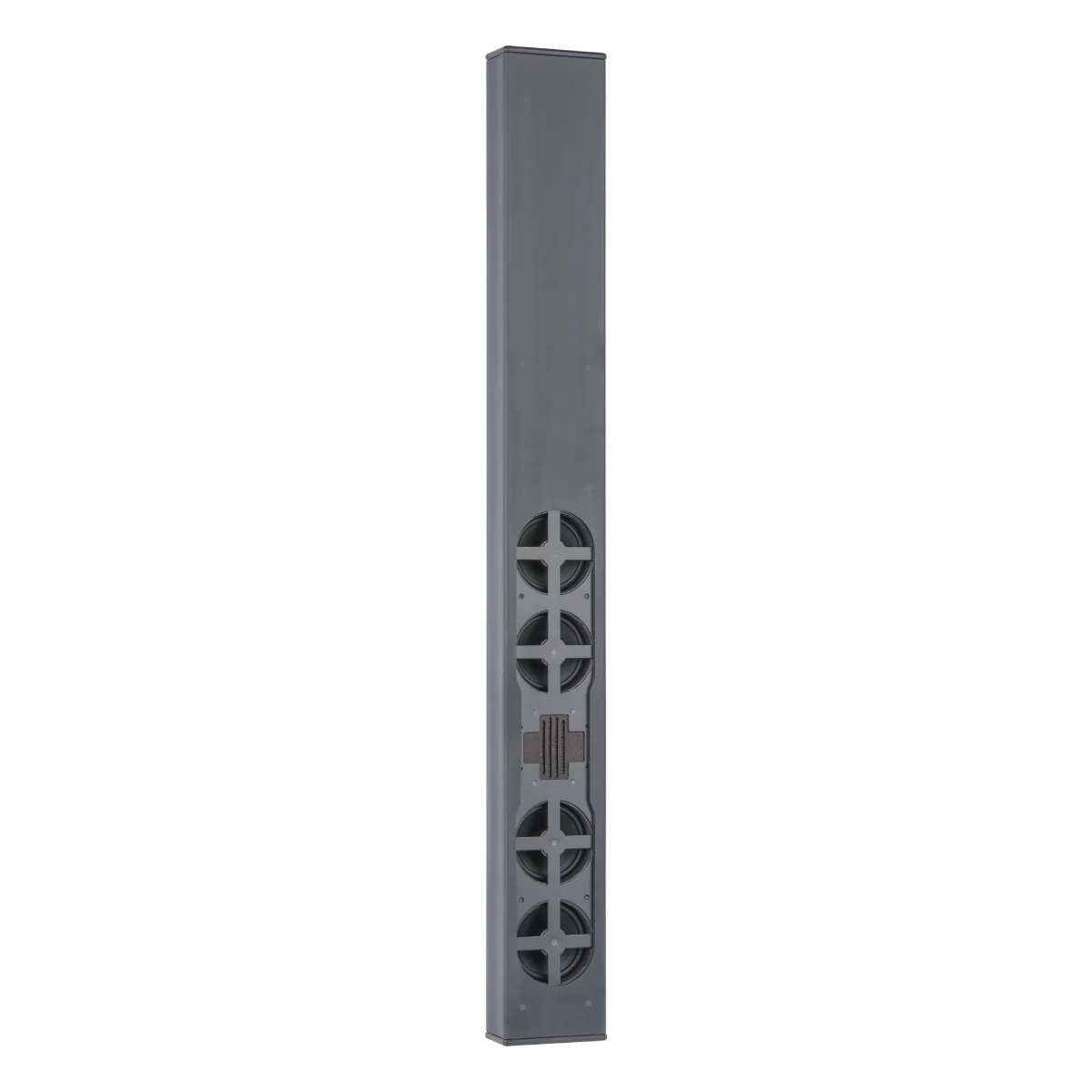

The Flex Precision FP-V2 is a display mounted single-channel horizontal loudspeaker that employs ribbon HF and extended range LF drivers in an ultra slim enclosure. Its frequency response (120-20,000 Hz 3 dB) has been optimized for speech intelligibility. Flex Precision loudspeakers can be used in combination with an Innovox Micro-Sub Series sub-woofer to extend low frequency response below 50 Hz to support full-range music program.

Key Features
  • Made to match the height of the display
  • Works with Micro-Sub Series subwoofers
  • Ribbon HF driver provides speech clarity
Applications
  • Stereo video conference speaker
  • Audio for digital signage
  • Uniform sound coverage for near-field applications

Nominal Data

Frequency Response 120 Hz-–20 KHz ±3dB
Coverage 120° H x 90° V
Long-term Output 105 dB
Peak Output 111 dB
Sensitivity 92 dB @ 2.83 volts / 1M
Impedence 6 Ω per channel
Power Handling 90 W (AES-2) per channel
