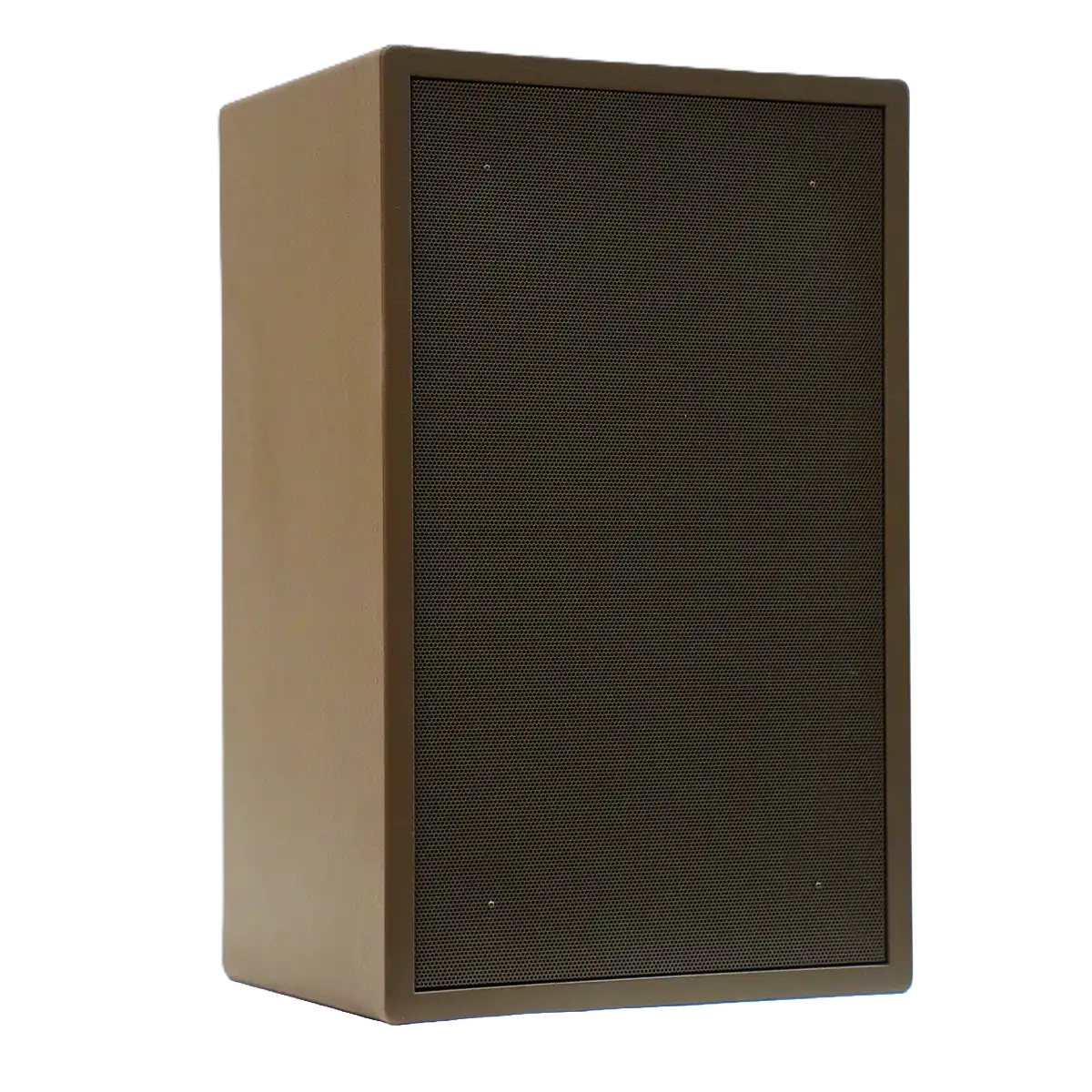

The Micro-Sub 12P is a high definition powered subwoofer designed for permanent installation. It uses a 12” low frequency driver in a compact sealed enclosure and employs a 200-Watt PowerSoft Class D amplifier to achieve superior transient response
and maximum output. The Micro-Sub 12P complements the Innovox Slim Line and SLA Series of shallow profile surface-mount loudspeakers, and the Flex Video Series of display-mounted loudspeakers. It also is used as a low-bass component in extended range distributed audio systems.
Micro-Sub 12P
Compact Powered Sub-Bass Loudspeaker
Key Features
- Very Compact Enclosure (only 9” deep)
- Excellent Transient Response
- LF Extension to 32 Hz
Applications
- Sound for Video Presentations
- Themed Venues and Restaurants
- Boardrooms
- Retail Spaces
- Video Wall Installations
Nominal Data
| Frequency Response | 32 Hz-–350 Hz ±3dB |
| Class D Power | 1200 W RMS |
| Maximum Long-term Output | 117 dB |
| Peak Output | 123 dB |
