SB-118

SB-118

Installation Sub-Woofers

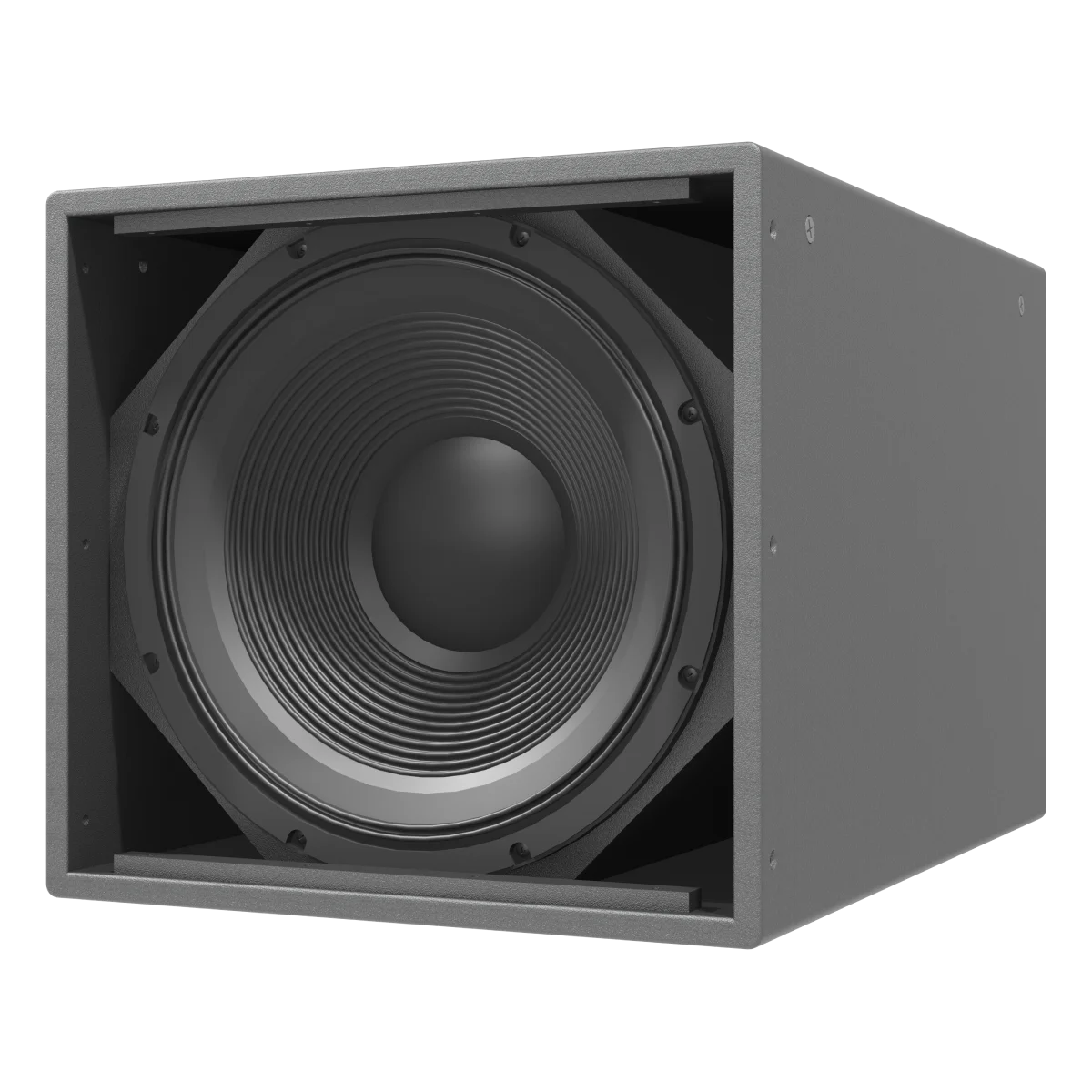

The SB-118 is a very compact sub-bass module designed for permanent installation. It employs a 18-inch long-excursion driver in an optimally tuned vented enclosure which can be suspended from internal fly points or positioned on the floor. The SB-118 is an ideal choice for applications requiring precise transient response and low bass extension. Its compact size fits well under stages, on stage, and in flown arrays.

Key Features
  • Compact Size
  • Bass Extension to 28 Hz
  • Very High Output
  • Excellent Transient Response
Applications
  • Houses of Worship
  • Performing Arts Centers
  • Cinema
  • Night Clubs

Nominal Data

Frequency Response 28 Hz – 350 Hz ±3dB
Coverage Omni-directional
Long-term Output 127 dB
Peak Output 133 dB
Impedance 8 Ω
Power Handling 1200 W long term (AES-2)
Sensitivity 97 dB @ 2.83V / 1M (in operating band)

Data Sheet

Dimensional Drawings
