SBA-115

Arrayable High Output Sub-Bass

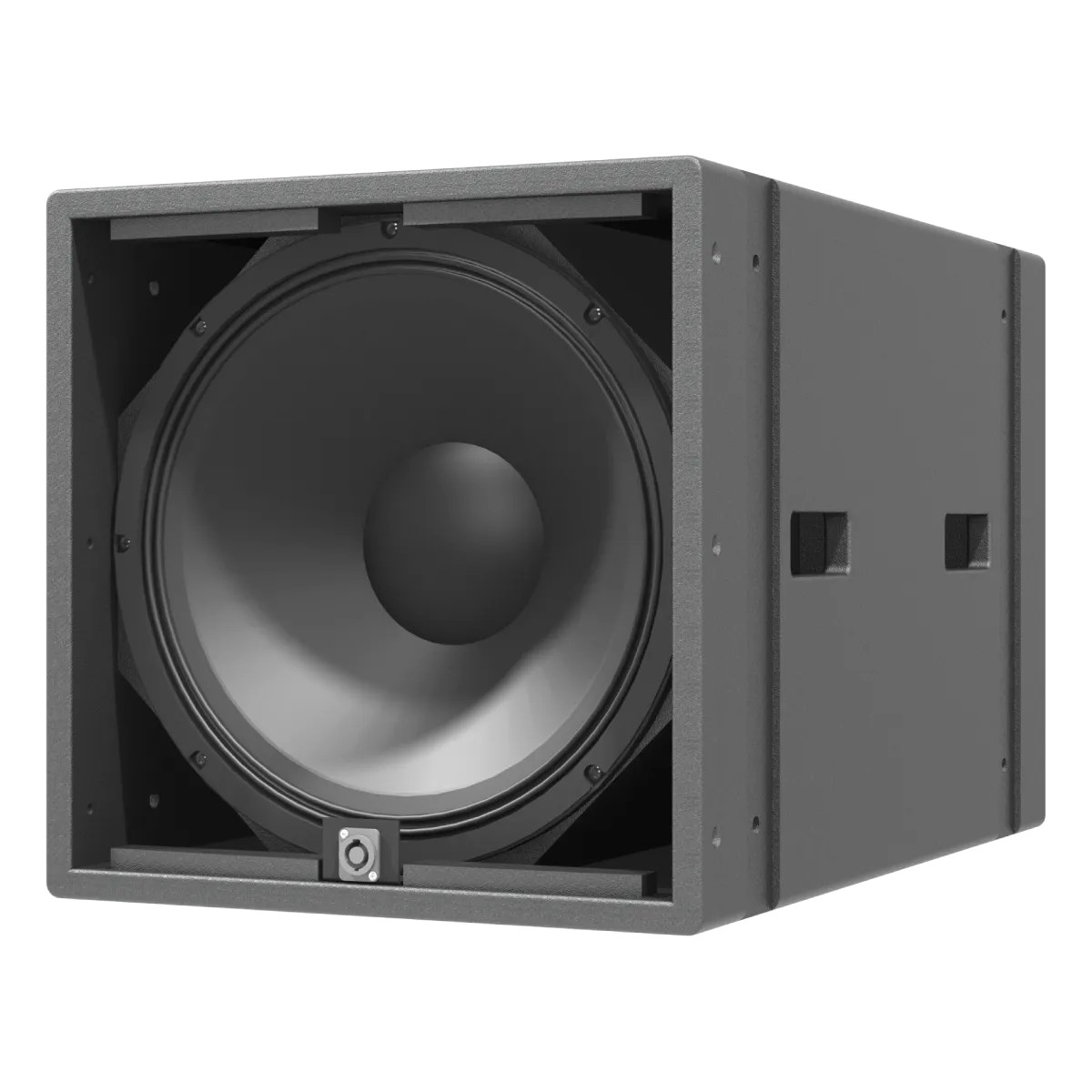

The SBA-115 employs a 15-inch long-excursion driver in an optimally tuned vented enclosure. It is an ideal choice for applications requiring precise transient response and low bass extension in a compact very high output package. The SBA-115 is frequently used as a single unit, or in multiples to create cardioid bass arrays. Its compact size fits well under stages or on stage, and dimensionally matches the HLA-16 in flown arrays.

Key Features

• Compact Size
• Bass Extension to 32 Hz
• Very High Output
• Excellent Transient Response
• Component of Cardioid Bass Arrays

Applications

• Houses of Worship
• Performing Arts Centers
• Cinema
• Night Clubs

Nominal Data

Frequency Response 34 Hz- 350 Hz ± 3 dB
Coverage Omnidirectional
Long Term Output 123 dB
Peak Output 129 dB
Impedance 8 Ω
Power Handling 1000W long term (AES-2)
Sensitivity 95 dB @ 2.83V/1M (in operating band)
Height 17.25" [438mm]
Width 17.25" [438mm]
Depth 27.63" [702mm]
Net Weight 90 lbs [409 kg]
Shipping Weight 117 lbs [532 kg]
