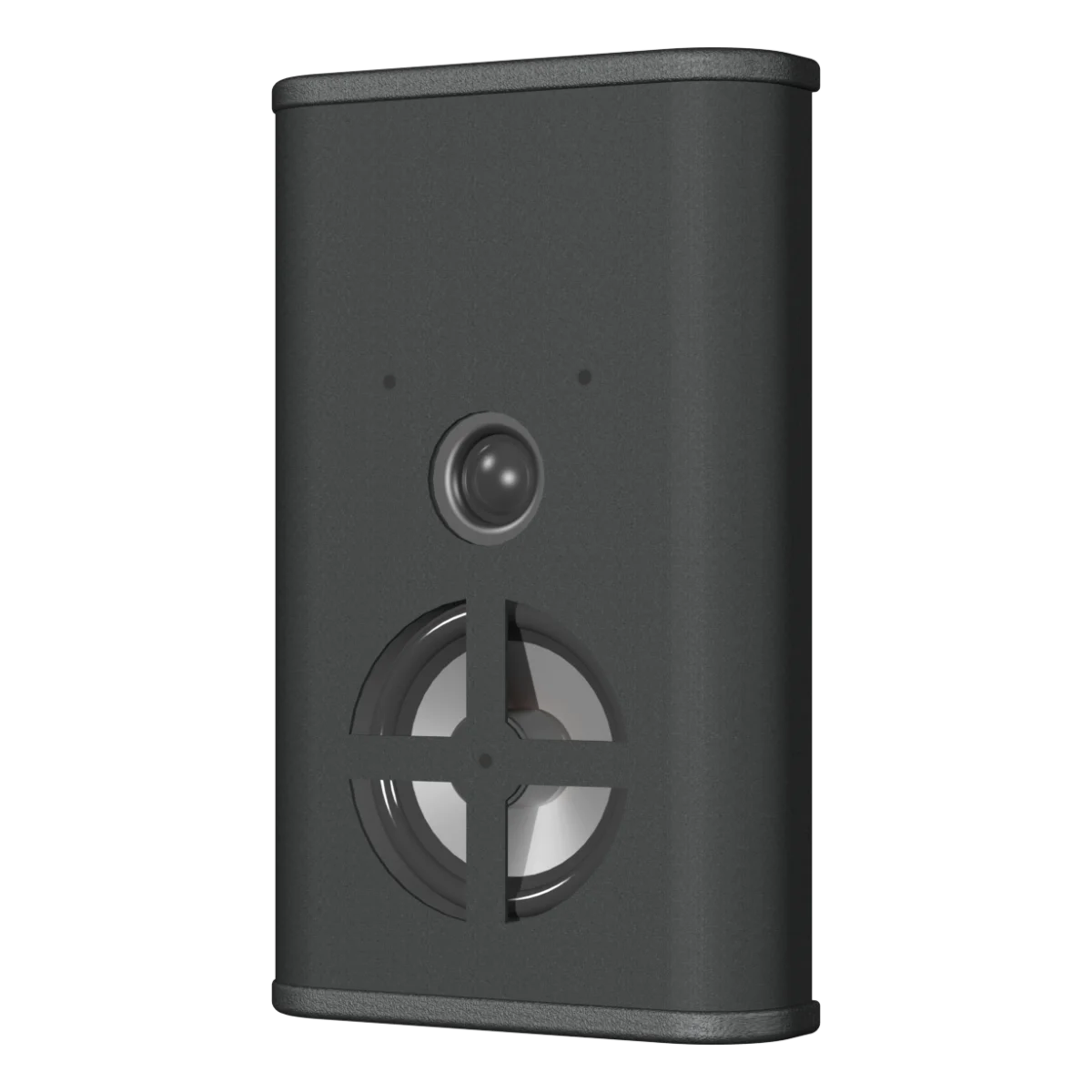

SL-1.1 US

Slim Profile Surface Mount Loudspeakers

Slim Line surface-mount loudspeakers have a very thin profile (2” D or less) and are ideal for nearfield applications. They are voiced to deliver an accurate neutral sound. The SL-1.1 US is an ultra-slim 2-way loudspeaker designed to be surface-mounted flat on a wall and disappear into the architectural surroundings. It employs a 1” textile dome HF driver and a 4” long-excursion LF driver to yield a very smooth, neutral response for near-field applications.

Key Features
  • 120° H x 120° V Coverage
  • On-wall Mounting
  • Ultra-thin Profile (only 1.75” deep)
  • Blends into Architectural Environment
  • Hidden Mounting Bracket
Applications
  • Sound for Video Presentations
  • Home Theater LCR
  • Home Theatre Surrounds
  • Spot Fill in Larger Sound Systems

Nominal Data

Frequency Response 130 Hz-–20 KHz ±3dB
Sensitivity 89 dB @ 2.83 volts / 1M
Power Handling 45 W long term program (AES-2)
Nominal Coverage 120° H x 120° V
Maximum Long-term Output 103 dB @ 1 meter
Peak Output 109 dB @ 1 meter
