SLA-6.1-Slim

SLA-6.1 Slim

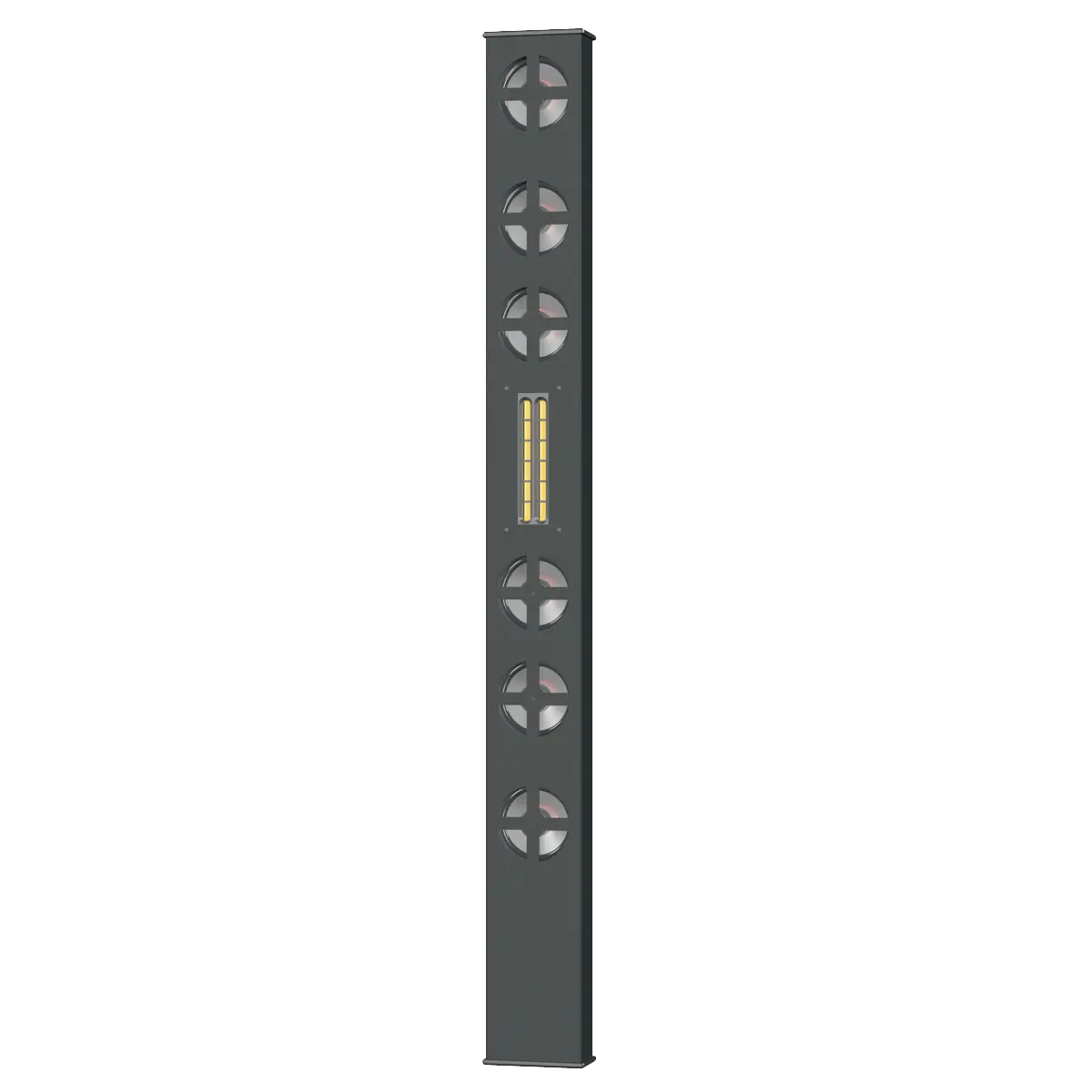

Very Slim Profile Shaded Line Array with 4 x 3.5″ Low & Single Ribbon High Frequency Drivers

The SLA-6.1 slim is a Frequency Shaded Line Array loudspeaker employing a ribbon HF driver and six 3.5” LF drivers within an ultra slim profile enclosure (only 2.1” deep).  It is designed to work in highly reverberant environments where its broad 120° horizontal coverage and focused 25° vertical pattern are beneficial.

Key Features

• 120° H x 25° V coverage
• Maintains 25° vertical pattern to 650Hz
• Very Slim Profile
• Optimized for speech and musical detail

Applications

• Churches
• Classrooms
• Lecture Halls
• Presentation spaces

Nominal Data

Vertical Directivity to: 650 Hz
Nominal Coverage: 120° H x 25° V
Frequency Response: 8Ω (70-volt available)
Nominal Impedance: 120 – 20,000 Hz, ± 3 dB
Sensitivity (2.83 volts @ 1M): 92 dB
Power Handling (AES-2): Long-term 150 W
Maximum Output @ 1M: Long-term 112 dB Peak 116 dB
Dimensions: Height: 40.50" [1029mm], Width: 4.10" [104mm], Depth: 2.12" [54mm]

Data Sheet

Dimensional Drawings
