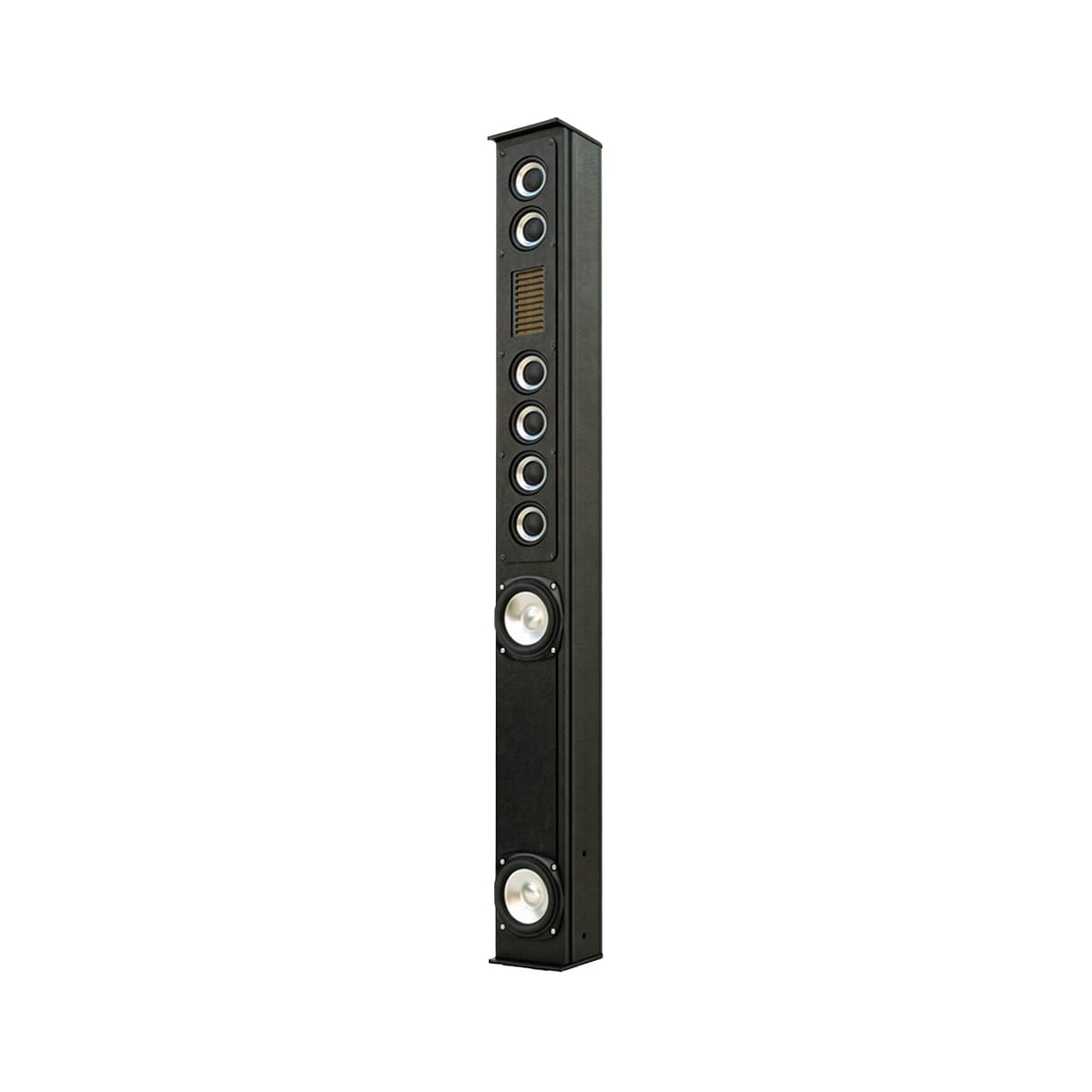

The SLA-Micro EX is a bi-amplified combination of a frequency shaded line-array and a dipole LF- array. It is designed to be free standing on a floor mount for use in historically sensitive or acoustically challenging spaces. It is commonly used in combination with satellite articulation speakers to create directsound-enhancement systems with face-to-face speech clarity. The SLA-Micro EX employs an air-motion transformer HF driver and six 2 1/2” MF drivers in a line-array with two 4” long-throw LF drivers in a dipole configuration. A sophisticated filter circuit sequentially integrates drivers in the line-array to maintain pattern control to 350 Hz and ensures a smooth transition from line-source to point-source behavior at lower frequencies. The result is very flat response and uniform pattern control, yielding superior speech clarity and musical detail.
SLA-Micro EX
A compact, high output Frequency Shaded Line Array loudspeaker employing an AMT ribbon HF driver, six 2.5” LF drivers and Dipole LF
Key Features
• Maintains 50° pattern control to 350 Hz
• Ultra-low profile: 4.5 inches wide and only 4.3 inches deep
• Frequency Shading optimizes pattern uniformity
• Effective projection up to 50 feet
Applications
• Courtrooms
• City Council Chambers
• Historically Sensitive Spaces
Nominal Data
| Nominal Coverage: | 120° H x 50° V |
| Frequency Response: | 160 Hz-–20 KHz ±3dB |
| Nominal Impedance: | 8 Ω (70-volt available) |
| Sensitivity (2.83 volts @ 1M): | 91 dB @ 2.83 volts / 1M |
| Power Handling (AES-2): | 175 W (AES-2) |
| Maximum Output @ 1M: | 175 dB |
| Dimensions: | 39.25” / 997 mm, 3.25” / 82.5 mm, 2.25” / 57.1 mm |
