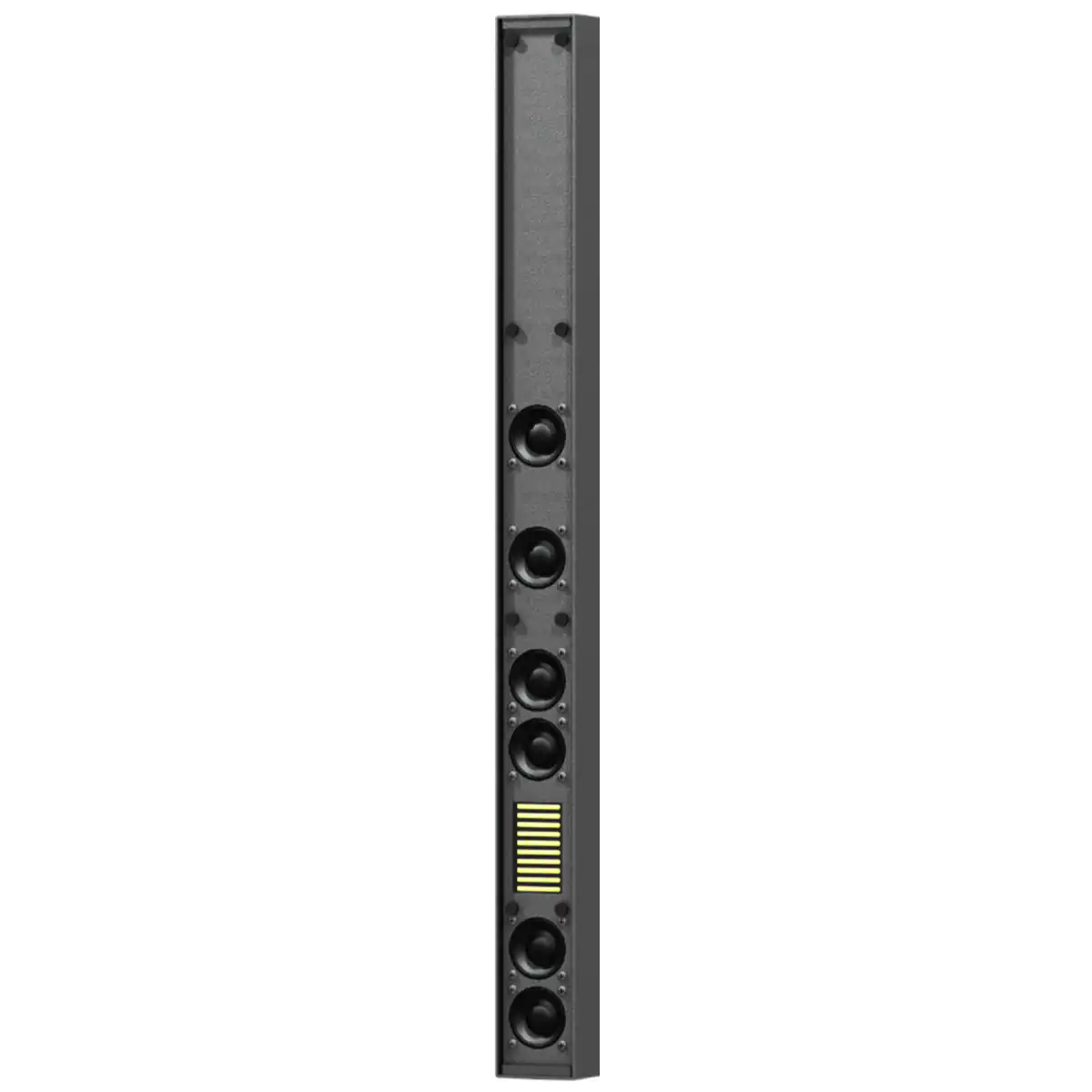

The SLA-Micro is a compact Frequency Shaded Line Array Loudspeaker employing an Air-Motion-Transformer (AMT)in conjunction with six 2.5” extended range drivers, all within an ultra-slim enclosure. It is designed to work in highly reverberant environments where very broad, uniform horizontal coverage and a focused vertical pattern are beneficial. A sophisticated filter circuit sequentially integrates drivers in the array to maintain pattern control to 650 Hz and ensures a smooth transition from line-source to point-source behavior at lower frequencies. The result is very flat frequency response and uniform pattern control, yielding superior speech clarity and musical detail.
SLA-Micro
A compact, high output Frequency Shaded Line Array loudspeaker employing an AMT ribbon HF driver and six 2.5” LF drivers
Key Features
- Maintains 50˚Pattern Control to 650 Hz
- Ultra-slim Profile: 3.25” Wide and Only 2.25” Deep
- Frequency Shading Optimizes Pattern uniformity
- Effective Projection Beyond 50 Feet
Applications
- Houses of Worship
- Classrooms
- Museums
- Presentation Spaces
- Museums
- Retail
- Hospitality
- Corporate Theaters
Nominal Data
| Nominal Coverage: | 120° H x 50° V |
| Frequency Response: | 160 Hz-–20 KHz ±3dB |
| Nominal Impedance: | 8 Ω (70-volt available) |
| Sensitivity (2.83 volts @ 1M): | 91 dB @ 2.83 volts / 1M |
| Power Handling (AES-2): | 175 W (AES-2) |
| Maximum Output @ 1M: | 175 dB |
| Dimensions: | 39.25” / 997 mm, 3.25” / 82.5 mm, 2.25” / 57.1 mm |
