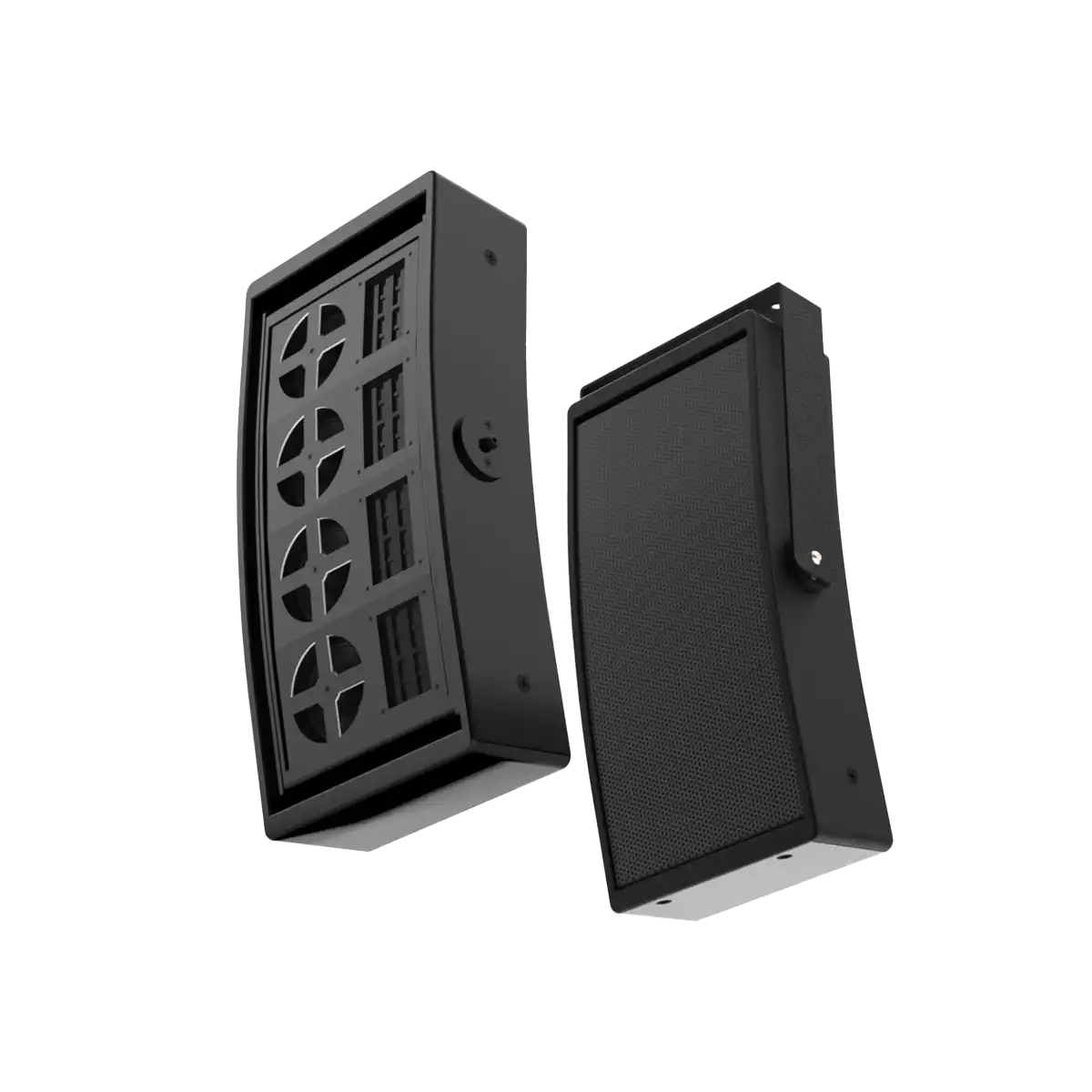

The CLA-435 is a four-element line-array loudspeaker designed for speech reinforcement in challenging acoustic environments. It features four 3.5-inch mid-frequency and four ribbon high-frequency drivers, delivering outstanding speech intelligibility and musical detail.
This loudspeaker comes pre-configured with a 35° vertical and 120° horizontal coverage pattern.
It effectively maintains vertical control to 1000Hz and has a usable frequency range of 150 Hz to 20 kHz. The CLA-435 is specifically engineered to seamlessly integrate into any CLA deployment, ensuring effective coverage and intelligibility in larger spaces.
CLA-435
Curvilinear Line Array Loudspeaker for Articulation Extension Applications
Key Features
• Asymmetrical 120° H x 35° V Coverage
• Seamlessly integrates into the architecture
• Unmatched intelligibility and musical detail
• Exceptional vertical control / wide horizontal coverage
• Available in a variety of finishes
Applications
• Houses of worship
• Auditoriums
• Multipurpose meeting venues
• Places of gathering, lobbies
• Corporate gathering spaces
• Higher education / K12
Nominal Data
| Frequency Response | 150 Hz-–20 KHz ±3dB |
| Sensitivity | 98 dB @ 2.83 volts / 1M |
| Power Handling (AES-2) | 300W |
| Impedence | 8 Ohm |
| Sensitivity | 94 dB / 283 V |
| Maximum Long-term Output | 109 dB |
| Peak Output | 123 dB |
