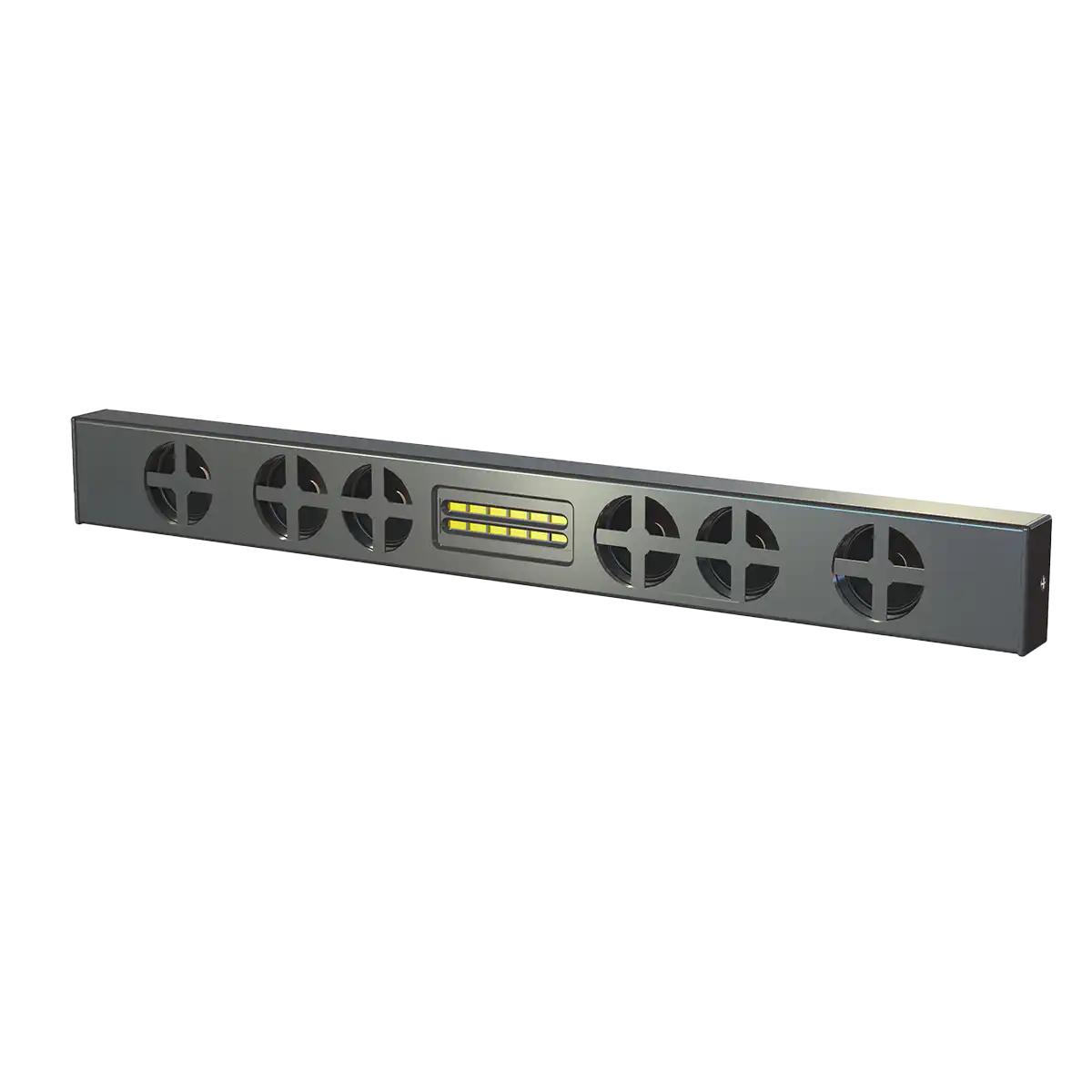

FF-H1.25 Plus

Passive Horizontal Line Array Solution for Longer Rooms

The FF-H1.25 Plus loudspeaker employs shaded line array technology with ribbon high frequency drivers to extend sound projection in longer rooms. Their frequency response (120-20,000Hz ±3dB) is optimized for speech intelligibility and musical detail.

The FF-H1.25 Plus loudspeaker pairs can be used in combination with an Innovox Micro-Sub Series subwoofer to extend low frequency response to support full-range music program.

Key Features
  • Made To Match Width Of Video Display
  • Ribbon Hf Driver Provides Speech Clarity
  • Precise 25° Horizontal Control
  • Line Array Projection For Longer Rooms
Applications
  • Mono Video Conference Speaker
  • Audio To Compliment Digital Signage
  • Managed Sound Coverage for Museum Displays

Nominal Data

Frequency Response 120 Hz-–20 KHz ±3dB
Sensitivity 95 dB @ 2.83 volts / 1M
Pattern Control to 650 Hz
Nominal Coverage 50° H x 120° V
Long Term Power Handling 200 W (AES-2)
Maximum Long-term Output 116 dB
Peak Output 122 dB

Data Sheet

FF-H1.25 Plus

Dimensional Drawings

FF-H1.25 Plus (PDF)
FF-H1.25 Plus (CAD)
