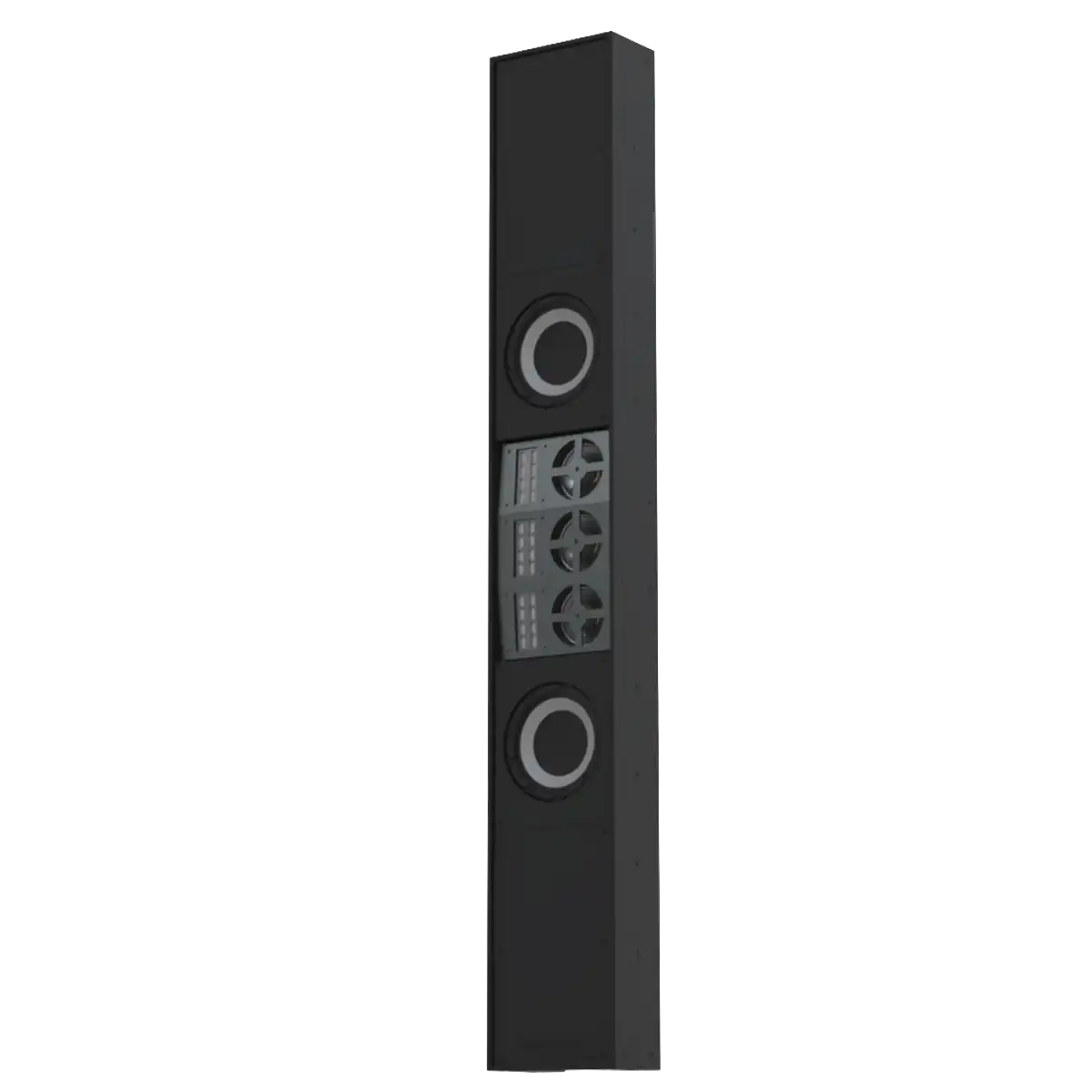

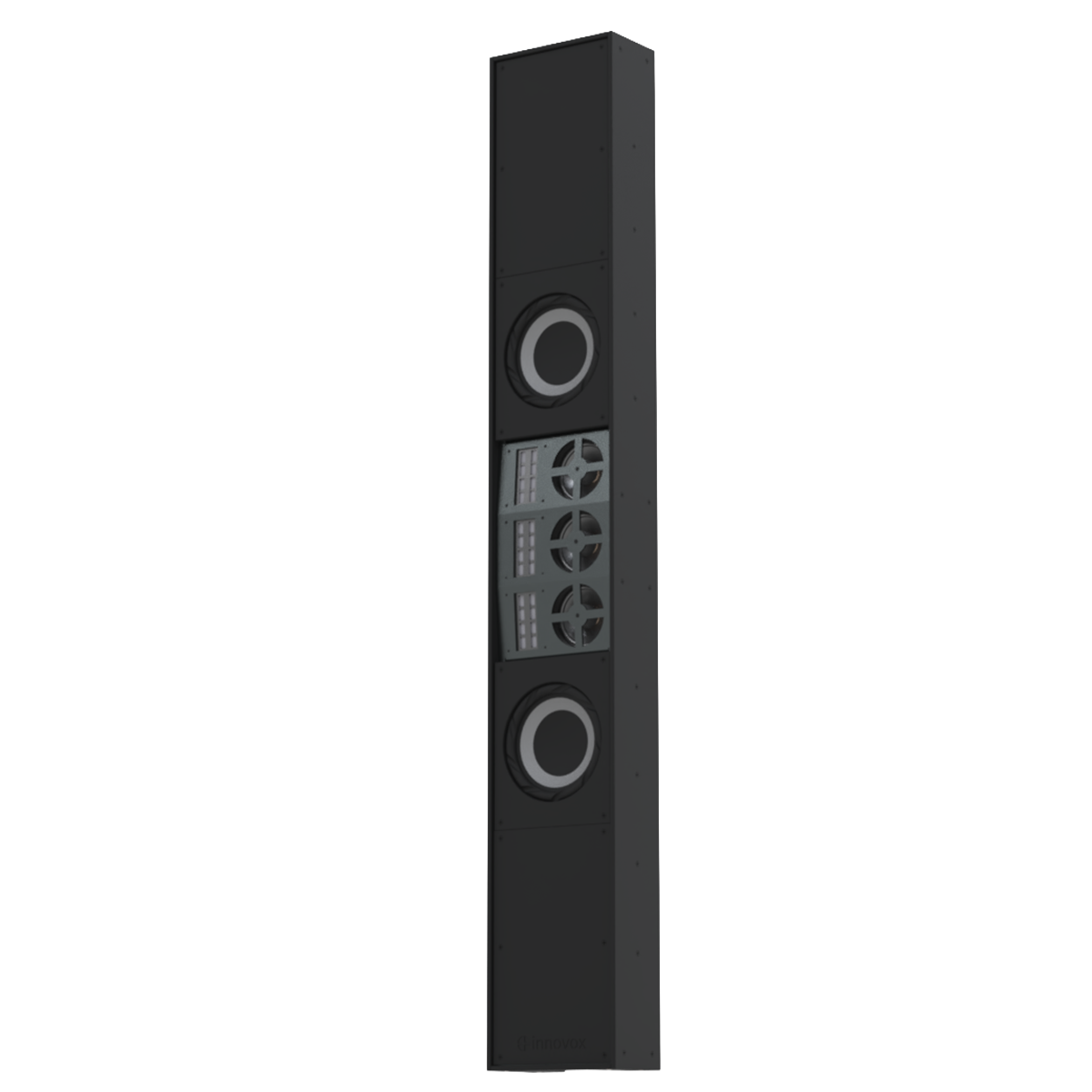

FlexArray 1 is a loudspeaker system designed to support video walls and large LED displays. They employ a combination of a curved line array with a dipole low frequency steering module, and a sophisticated powered DSP by PowerSoft. This unique powered hybrid achieves the precise vertical control and uniform back of room coverage that is essential for high speech intelligibility in longer reverberant spaces. Each FlexArray 1 system is dimension matched and factory configured for your project based on construction documents or contractor supplied field measurements in order to optimize its performance in your room. The FlexArray 1 modules are configurable based on the required coverage pattern and acoustical center of the speaker.
Flex Array 1
Configured for Video Walls & LED Displays
Key Features
- Powersoft Power and DSP
- Integrated Dipole Sub-bass
- Line Array projection for back of room coverage
- Superior transient response
Applications
- Sound for Large Video walls
- Sound for Large Projection screens
- Sound for Large LED Displays
Nominal Data
| Frequency Response | 48 Hz-–20 KHz ±3dB |
| Nominal Pattern Control to | 180 Hz |
| Nominal Coverage | 120° H x 35° V |
| Total Managed Power | 1200 Watts |
| Long Term Power Handling | 200 W (AES-2) |
| Maximum Long-term Output | 114 dB @ 1m |
| Peak Output | 120 dB @ 1m |
