HLA-820V / HLA-820SxS

Hybrid Line Array Series

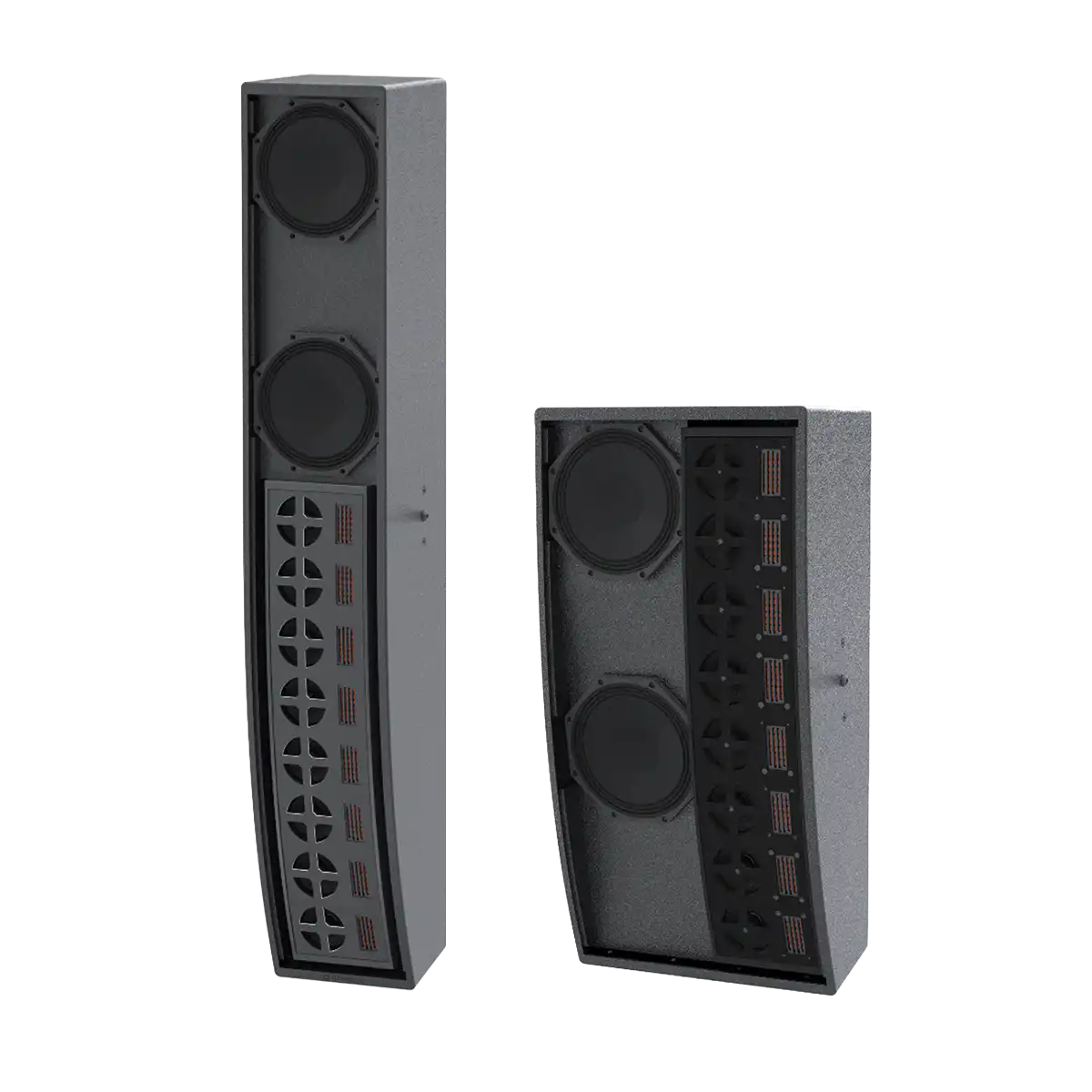

The HLA- 820V and HLA-820SxS are self-powered hybrid integrations of an eight-element J–array and a directional dipole low-frequency loudspeaker pair. This unique integration yields precise vertical control not previously possible in such a compact package. It is available in a vertical configuration (HLA-820V) or a side-by-side configuration (HLA-820SxS). The V and SxS variations are functionally identical and are offered as alternatives based on dimensional and aesthetic needs.

The line source portion contains eight proprietary 3.5” mid-range and eight high-frequency ribbon drivers. The low-frequency portion incorporates two 8” low-frequency drivers in a dipole configuration to extend vertical LF control not otherwise achieved in this compact foot print. An onboard Innovox DSP–amplifier provides 1600W of Class D power. The HLA-820 has been pre-configured for an asymmetrical 120° H by 20° V coverage pattern with vertical directivity to 240 wHz, and LF frequency response to 60 Hz.

Key Features
  • Asymmetrical 120° Horizontal x 20° Vertical Coverage
  • Onboard Class D Power and DSP
  • Maintains vertical control to 240 Hz
  • Available in two standard colors Black [BLK], White [WHT], or custom color [CST]
Applications
  • Large Format Video Walls
  • Houses of Worship
  • Presentation & Training Spaces
  • Auditorium & Performance Spaces
  • Sporting venues

Nominal Data

Frequency Response 60 Hz–20 KHz ±3dB
Coverage H120° x V20°
Vertical Directivity To 240 Hz
Components & Loading (8) proprietary 3.5” mid-range, (8) ribbon high-frequency, and (2) 8” low-frequency drivers
Long-term Output 119 dB
Peak Output 125 dB
Amplification Class D power amp 2 x 800 watts RMS
AC Power 85VAC–265VAC, 50 or 60 Hz
Height HLA-820V - 53.00" [1346] HLA-820SxS - 31.43" [798]
Width HLA-820V - 9.25” [235 mm] HLA-820SxS - 16.25” [413 mm]
Depth HLA-820V - 8.50" [216mm] HLA-820SxS - [216mm]
Net Weight 46 lbs. [46.4 kg]
Shipping Weight 56 lbs. [52.7 kg]
