SLF-212

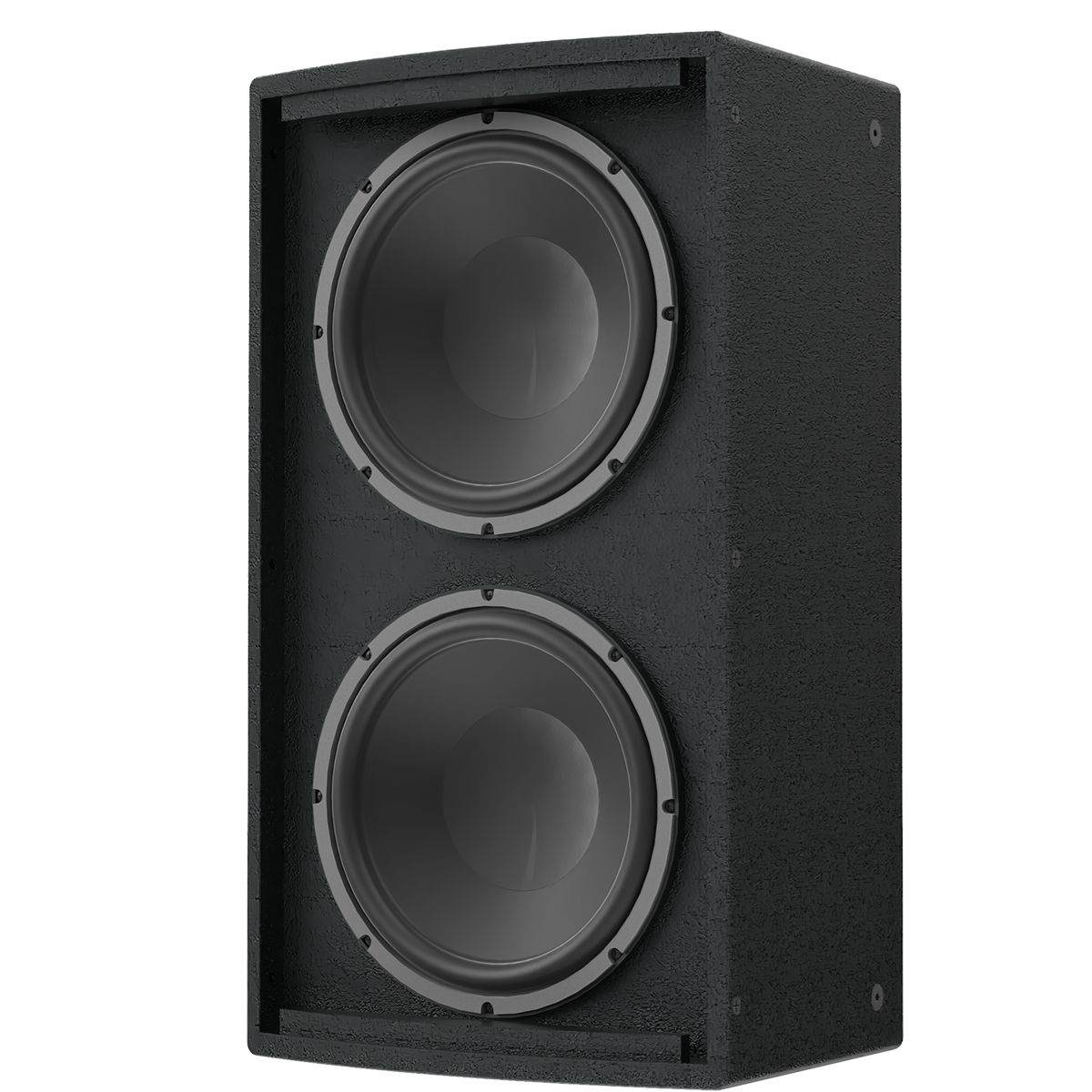

SLF-212 Compact Sealed Sub-Bass Loudspeaker

The SLF-212 is a compact, sealed sub-bass loudspeaker featuring two high-performance, long-excursion 12” drivers housed in a robust 0.75” Baltic birch enclosure. It’s finished in a durable Warnex textured coating, available in standard black or white, with custom colors offered to blend seamlessly into surrounding architecture.

Engineered to extend the low-frequency response of our CLA and HLA loudspeaker families, the SLF-212’s sealed design delivers exceptional transient response while maintaining usable frequency extension well below 40 Hz.

For flexible installation, the SLF-212 includes an extensive array of 3/8”- 16 fly points on all surfaces, allowing for easy and secure rigging in a variety of configurations.

Available variations: SLF-118 (one 18″ driver), SLF-215 (two 15″ drivers), SLF-218 (two 18″ drivers).

Key Features

• Sealed enclosure
• Exceptional trancient response (musical detail)
• Perfect companion to CLA and HLA
• Available in a variety of finishes

Applications

• Houses of worship
• Auditoriums
• Multipurpose meeting venues
• Places of gathering, lobbies
• Corporate gathering spaces
• Higher education / K12

Nominal Data

Frequency Response 35 Hz-–150 Hz ±3dB
Inpedence 4 Ohm
Sensitivity 100dB / 1W/1M
Components & Loading Two 12" LF drivers
Long Term Output 129 dB
Peak Output 132 dB
Input Configuration Speakon NL 4 x 1.2POL PHX x 1
Power Handling 800W RMS
Enclosure Type Sealed
Enclosure Material Baltic Birch, .75"
Height 28.63" [727.08mm]
Width 15.94" [404.88mm]
Depth 12.24" [311mm]
Net Weight 84 lbs [38kg]
Shipping Weight 100 lbs [45kg]
Note Available variations: SLF-118 (one 18" driver), SLF-215 (two 15" drivers), SLF-218 (two 18" drivers)
