The HLA-UB1 is a M/HF loudspeaker specifically designed to extend the projection of an HLA Hybrid Line Array and achieve precise under balcony coverage. It can also be used to enhance articulation in other near field applications. A 6” ribbon HF driver with wave guide and four 3.5 MF drivers are employed to match the clarity, detail and program level of other HLA loudspeakers. The enclosure’s shallow depth allows easy integration into the architectural environment.
The HLA-Stage Lip 25/50 is a companion loudspeaker specifically designed to work in conjunction with an HLA hybrid line array to better serve front row seats. It provides both enhanced articulation and helps to localize the apparent sound source with performers on stage. A 6” ribbon HF driver and two 3.5 MF drivers are employed to match the clarity, detail and program level of other HLA loudspeakers. The enclosure’s shallow depth allows easy integration into the architectural environment.
The HLA-1620P is a hybrid integration of a sixteen element J-array loudspeaker and a dipole directional low frequency loudspeaker. It is powered by two Powersoft internal 1500W amplifiers with on-board DSP. The J-array portion contains sixteen 3.5” mid-frequency drivers and sixteen ribbon high frequency drivers. The low frequency portion incorporates two 14” high-output low frequency drivers in a dipole configuration to extend vertical LF control. It has been preconfigured in an asymmetrical 120° H by 20° V coverage pattern with vertical directivity to 135 Hz, and low frequency response to 50 Hz.
The HLA-2050P is a hybrid integration of a twenty element J-array loudspeaker and dipole directional low frequency loudspeakers. It is powered by a 6000-watt Powersoft amplifier with on-board DSP. The J-array portion contains twenty 3.5” mid-frequency drivers and twenty ribbon high frequency drivers. The dipole has four 6.5” mid-bass drivers and two 15” high output low frequency drivers, in a unique staged configuration to extend vertical LF control. It has been preconfigured in an asymmetrical 120°H x 50° V coverage pattern with vertical directivity to 96 Hz, and low frequency response to 50 Hz. the HLA-2050RP is a rack mounted variant. It is powered by a Powersoft rack-mounted amplifier with DSP and 6000-Watts of managed class D power.
The HLA-2035P is a hybrid integration of a twenty element J-array loudspeaker and dipole directional low frequency loudspeakers. It is powered by a 4500-watt Powersoft amplifier with on-board DSP. The J-array portion contains twenty 3.5” mid-frequency drivers and twenty ribbon high frequency drivers. The dipole has four 6.5” mid-bass drivers and two 15” high output low frequency drivers, in a unique staged configuration to extend vertical LF control. It has been preconfigured in an asymmetrical 120° H by 35° V coverage pattern with vertical directivity to 96 Hz, and low frequency response to 50 Hz. the HLA-2035RP is a rack mounted variant. It is powered by a Powersoft rack-mounted amplifier with DSP and 2800-Watts of managed class D power.
The HLA-1650P is a hybrid integration of a sixteen element J-array loudspeaker and a dipole directional low frequency loudspeaker. It is powered by two Powersoft internal 1500W amplifiers with on-board DSP. The J-array portion contains sixteen 3.5” mid-frequency drivers and sixteen ribbon high frequency drivers. The low frequency portion incorporates two 14” high-output low frequency drivers in a dipole configuration to extend vertical LF control. It has been preconfigured in an asymmetrical 120° H by 50° V coverage pattern with vertical directivity to 135 Hz, and low frequency response to 50 Hz. the HLA-1650RP is a rack mounted variant. It is powered by a Powersoft rack-mounted amplifier with DSP and 2800-Watts of managed class D power.
The HLA-1635P is a hybrid integration of a sixteen element J-array loudspeaker and a dipole directional low frequency loudspeaker. It is powered by two Powersoft internal 1500W amplifiers with on-board DSP. The J-array portion contains sixteen 3.5” mid-frequency drivers and sixteen ribbon high frequency drivers. The low frequency portion incorporates two 14” high-output low frequency drivers in a dipole configuration to extend vertical LF control. It has been preconfigured in an asymmetrical 120° H by 35° V coverage pattern with vertical directivity to 135 Hz, and low frequency response to 50 Hz. The HLA-1635RP is a rack mounted variant. It is powered by a Powersoft rack-mounted amplifier with DSP and 2800-Watts of managed class D power.

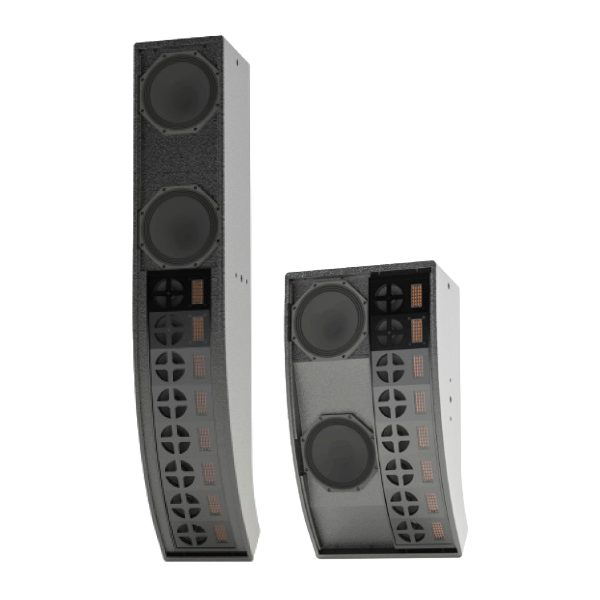

The HLA-850V and HLA-850SxS are self-powered hybrid integrations of an eight-element J–array and a directional dipole low-frequency loudspeaker pair. This unique integration yields precise vertical control not previously possible in such a compact package. It is available in a vertical configuration (HLA-850V) or a side-by-side configuration (HLA-850SxS). The V and SxS variations are functionally identical and are offered as alternatives based on dimensional and aesthetic needs. The line source portion contains eight proprietary 3.5” mid-range and eight high-frequency ribbon drivers. The low-frequency portion incorporates two 8” low-frequency drivers in a dipole configuration to extend vertical LF control not otherwise achieved in this compact foot print. An onboard Innovox DSP–amplifier provides 1600W of Class D power. The HLA-850 has been pre-configured for an asymmetrical 120° H by 50° V coverage pattern with vertical directivity to 240 wHz, and LF frequency response to 60 Hz.

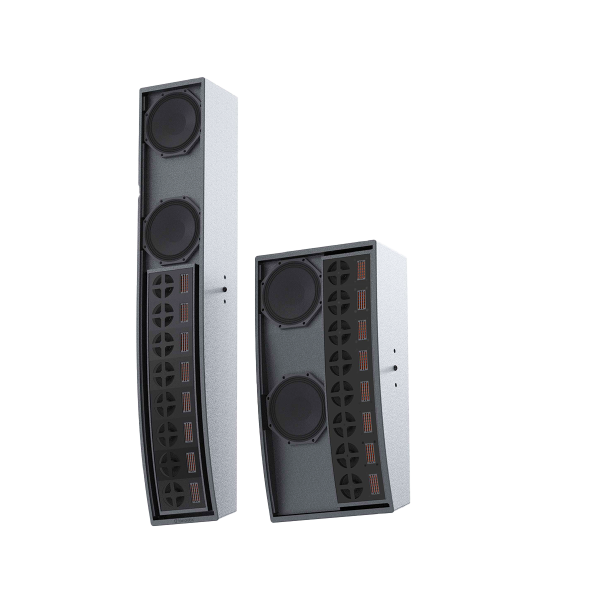

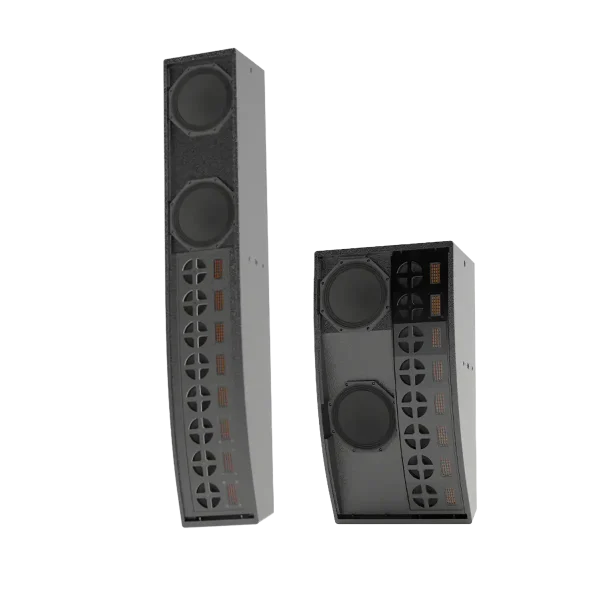

The HLA-835V and HLA-835SxS are self-powered hybrid integrations of an eight-element J–array and a directional dipole low-frequency loudspeaker pair. This unique integration yields precise vertical control not previously possible in such a compact package. It is available in a vertical configuration (HLA-835V) or a side-by-side configuration (HLA-835SxS). The V and SxS variations are functionally identical and are offered as alternatives based on dimensional and aesthetic needs. The line source portion contains eight proprietary 3.5” mid-range and eight high-frequency ribbon drivers. The low-frequency portion incorporates two 8” low-frequency drivers in a dipole configuration to extend vertical LF control not otherwise achieved in this compact foot print. An onboard Innovox DSP–amplifier provides 1600W of Class D power. The HLA-835 has been pre-configured for an asymmetrical 120° H by 35° V coverage pattern with vertical directivity to 240 wHz, and LF frequency response to 60 Hz.

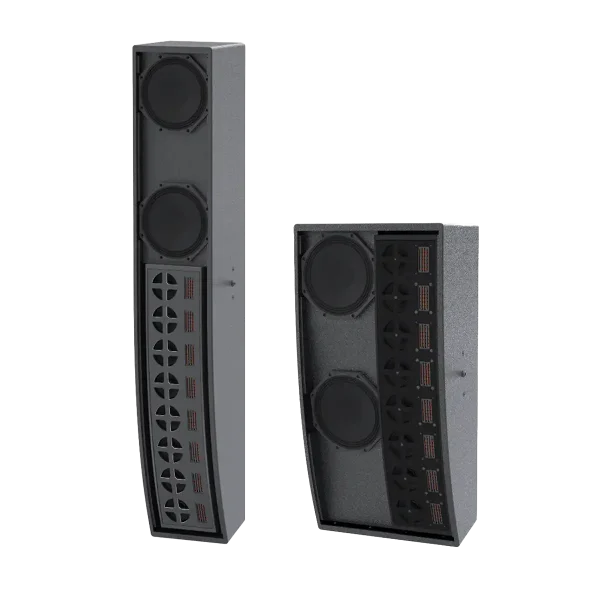

The HLA- 820V and HLA-820SxS are self-powered hybrid integrations of an eight-element J–array and a directional dipole low-frequency loudspeaker pair. This unique integration yields precise vertical control not previously possible in such a compact package. It is available in a vertical configuration (HLA-820V) or a side-by-side configuration (HLA-820SxS). The V and SxS variations are functionally identical and are offered as alternatives based on dimensional and aesthetic needs. The line source portion contains eight proprietary 3.5” mid-range and eight high-frequency ribbon drivers. The low-frequency portion incorporates two 8” low-frequency drivers in a dipole configuration to extend vertical LF control not otherwise achieved in this compact foot print. An onboard Innovox DSP–amplifier provides 1600W of Class D power. The HLA-820 has been pre-configured for an asymmetrical 120° H by 20° V coverage pattern with vertical directivity to 240 wHz, and LF frequency response to 60 Hz.
