Flex Precision display mount loudspeakers employ ribbon HF and extended range LF drivers in an ultra slim enclosure. Their frequency response (120-20,000 Hz ±3 dB) has been optimized for speech intelligibility.

Flex Precision loudspeakers are also available in three powered configurations, each with 100-watt class D amplifiers:

  • P – Basic power amp
  • PX – Power amp with pre-amp & DSP
  • PXD – Network version which adds Dante and ethernet control

Adding an Innovox Flex- Companion Series powered subwoofer to a PX or PXD equipped speaker will extend low-frequency performance below 50 Hz to deliver high impact full range music program.

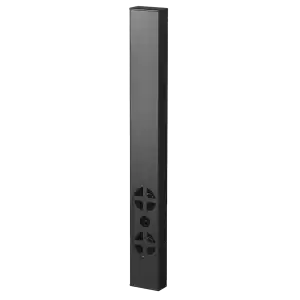

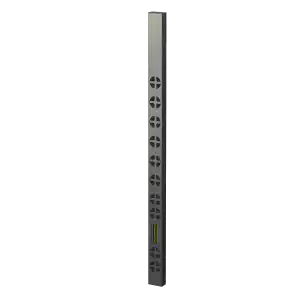

Vertical (Passive & Powered) Loudspeaker Solutions


Features
  • Minimum Display Height
  • Nominal Coverage
  • Nominal Impedance
  • Long-Term Power Handling (AES-2)
  • Amplifier Power
  • Long-Term Output
  • Peak Output
  • Height
  • Width
  • Depth
Passive

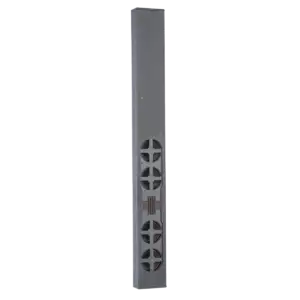

FP-V2
  • 18.00”
  • 120° H x 90° V
  • 6Ω per channel
  • 90 W
  • N/A
  • 105 dB
  • 111 dB
  • (custom)
  • 4.06”
  • 2.13”

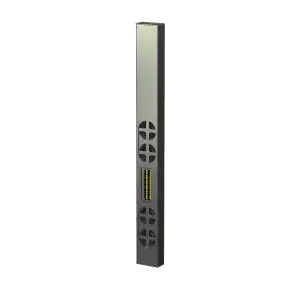

Powered
FP- V2 P,PX,PXD
  • 27.50”
  • 120° H x 90° V
  • N/A
  • N/A
  • 2 x 100W
  • 105 dB
  • 111 dB
  • (custom)
  • 4.06”
  • 2.13”

Flex Amplifier Options

  • (P) – Adds two 100-Watt channels of Class D amplification with balanced analog inputs.
  • (PX) – provides two 100-Watt channels of Class D amplification, plus DSP.  Inputs include balanced line level, unbalanced stereo, optical digital, speaker level, and USB.A processed sub-bass signal is provided for use with an Innovox Companion 2×6 powered subwoofer.  Control options include: IR, RS-232 & USB.
  • (PXD) – Provides all of the above, plus Dante and Ethernet control.

Key Features Passive

  • Made to match height of video display
  • Ribbon high-frequency driver for superior speech clarity.
  • Passive and P models work with Micro-Sub family of subwoofers
  • PX and PXD work with Companion Series powered subwoofer

Applications

  • Stereo video conference speakers
  • Complimentary audio for digital signage
  • Uniform sound coverage for small to medium-sized rooms.

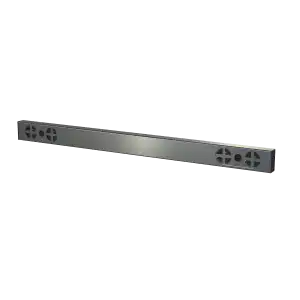

Horizontal Loudspeaker Solutions

Key Features

  • Made to match width of video display
  • Ribbon high-frequency driver for superior speech clarity
  • Works with Micro Sub series subwoofers

Applications

  • Mono video conference speaker
  • Complimentary audio for digital signage
  • Uniform sound coverage for small to medium-sized rooms.

Resources

Passive Horizontal Loudspeaker Data

Features
  • Minimum Display Width
  • Nominal Coverage
  • Nominal Impedance
  • Long-Term Power Handling (AES-2)
  • Long-Term Output
  • Peak Output
  • Height
  • Width
  • Depth

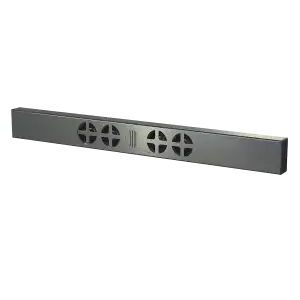

FP-H1
  • 18.00”
  • 120° H x 90° V
  • 6Ω
  • 90 W
  • 105 dB
  • 111 dB
  • 4.06”
  • (custom)
  • 2.13”

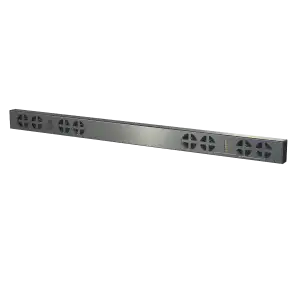

FP-H2
  • 37.00”
  • 120° H x 90° V
  • 6Ω per channel
  • 90 W per channel
  • 105 dB
  • 111 dB
  • 4.06”
  • (custom)
  • 2.13”

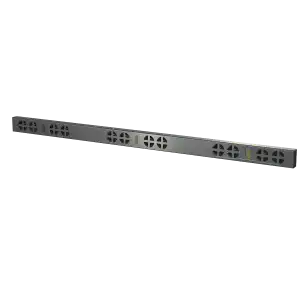

FP-H3
  • 50.00”
  • 120°Hx 90°V
  • 6Ω per channel
  • 90 W per channel
  • 105 dB
  • 111 dB
  • 4.06”
  • (custom)
  • 2.13”

Flex Amplifier Options

  • (P) – Adds two 100-Watt channels of Class D amplification with balanced analog inputs.
  • (PX) – provides two 100-Watt channels of Class D amplification, plus DSP.  Inputs include balanced line level, unbalanced stereo, optical digital, speaker level, and USB. A processed sub-bass signal is provided for use with an Innovox Companion 2×6 powered subwoofer.  Control options include: IR, RS-232 & USB.
  • (PXD) – Provides all of the above, plus Dante and Ethernet control.

Resources

Powered Horizontal Loudspeaker Data

Features
  • Minimum Display Width
  • Nominal Coverage
  • Long-Term Output
  • Peak Output
  • Height
  • Width
  • Depth

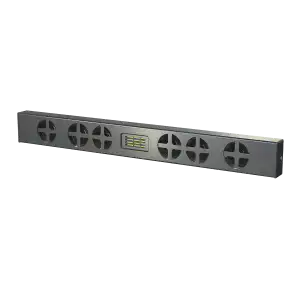

FP-H1 P, PX,PXD
  • 27.50” P
    32.43” PX,PXD
  • 120° H x 90° V
  • 105 dB
  • 111 dB
  • 4.06”
  • (custom)
  • 2.13”
FP-H2 P, PX,PXD
  • 46.00” P
    51.43” PX,PXD
  • 120° H x 90° V
  • 105 dB
  • 111 dB
  • 4.06”
  • (custom)
  • 2.13”

Key Features

  • Made to Match Width of Video Display
  • Onboard 100W Class D Power with DSP
  • PXD Networked Version Adds Ethernet Control & Dante
  • PX and PXD models work with Companion Series Powered Subwoofer

Applications

  • Mono Video Conference Speaker
  • Audio to Complement Digital Signage
  • Uniform Sound Coverage for Near-Field Applications
